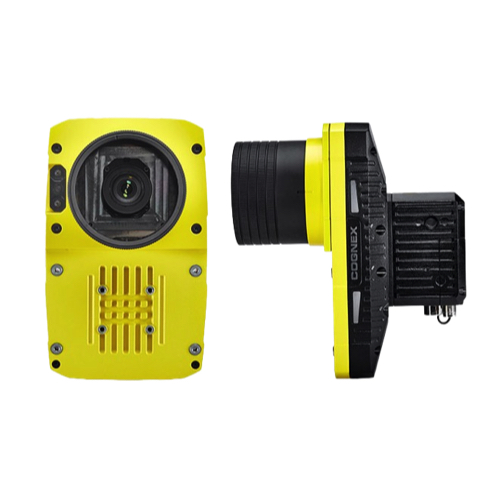

Cognex Dataman 580 Fixed-Mount Barcode Readers (4096 x 2160 pixels, 2/3" CMOS)

Image Sensor: 2/3 inch CMOS

Image Sensor Properties: Diagonal size: 12.96 mm, Pixel area: 7.84 μm²

Resolution: 4096 x 2160 pixels

Electronic Shutter Speed: Min. exposure: 29 μs / Max. exposure: Up to 10 ms (internal illumination) / Up to 400 ms (external illumination)

Acquisition: up to 38Hz

Lenses: 16 mm F6, 25 mm F6.5, 35 mm F6 (manual or high speed liquid lens)

Trigger and Tune Buttons: Yes

Discrete Inputs: 2 opto-isolated, 2 configurable

Discrete Outputs: 2 opto-isolated, 2 configurable

Other I/O points: 2 user configurable as inputs or outputs

Status Outputs: 5 status LEDs, audible beeper

Connectivity: Serial, Dual Ethernet, and CogLink interface

Protocols: RS-232, TCP/IP, PROFINET, EtherNet/IP™, SLMP, Modbus TCP, NTP, SFTP, FTP, MRS, CC-Link Java Scripting enabled for custom protocols

Power: 24V +/- 10% PoE (Power over Ethernet) Class 3

Power Consumption: < 15W without illumination | < 40W with external illumination peak | < 2A

Material: Zinc and aluminum alloy

Weight: 1780g

Operating Temperature: 0–40° C (32–104° F)

Storage Temperature: -10–60° C (14–140° F)

Humidity: <95% non-condensing

Standard: IP67
