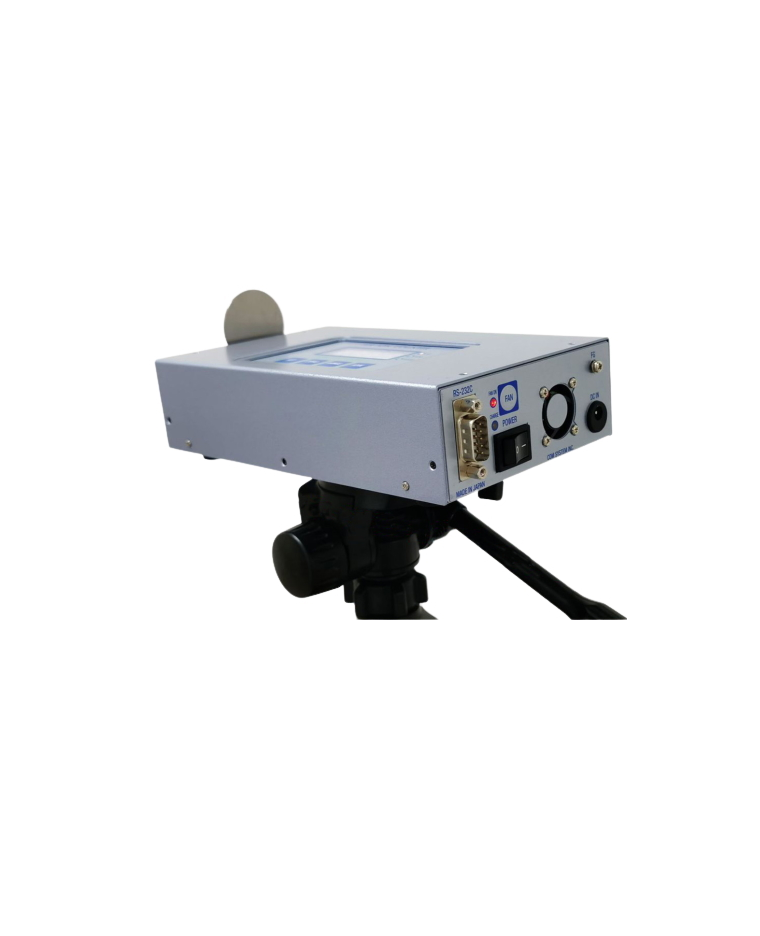

COM SYSTEM COM-3200PROⅡ Air Ion Counter (0- 2,000,000 ion/cc)

Measurement system: The Gerdien capacitor method

Measurement: The value which measured a positive ion and negative ion is displayed, and serial data are outputted.

Time base range: Positive ion, Negative 0-2,000,000 ion/cc

Measurement range :

R1= 0 - 20,000 ion/cc

R2= 0 - 200,000 ion/cc

R3= 0- 2,000,000 ion/cc　

Display for indication: Character 16-figure liquid crystal of two lines The display for indication of a STN system liquid crystal.

Output with a personal computer: Data is outputted to the exteriors, such as a personal computer, by input and output of RS-232C in real time.

Use power supply: The world range AC/DC adaptor power supply of AC100V - 240V, 　2 power supply systems of a built-in charge pond.

The 8-hour use by boost charge circuit built-in is possible.

An outside dimension and weight: Vertical 45 x width 112 x length 188 mm 【A projection thing is not included】

Weight: About 995g

Ion measurement: 5 ~ 35 ℃ 85%RH ≧ (Don't dew)

Thermometer sensor: Time base range: 0 - 50 ℃ Accuracy: 1 ℃

Hygrometer sensor: Time base range: 5% - 95% Accuracy: 5%

Accessories

The world range AC/DC adaptor of AC100V - 240V

Operation manual

Data collection display PC software corresponding to a network (those with expansion display functional)

There are a Japanese version and an English-language edition.
