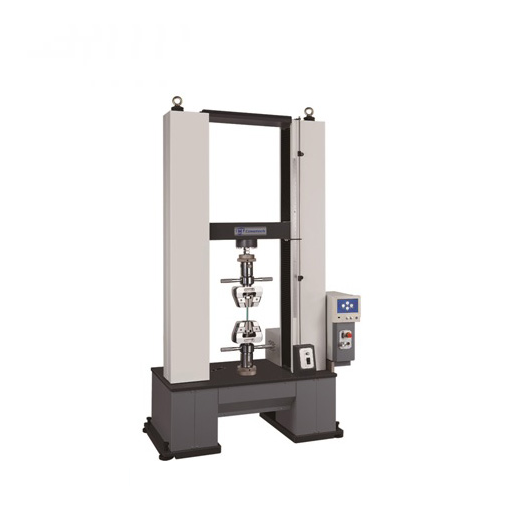

Max. Capacity: 500kN
Units: Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short); Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg
Force Precision: 1/100,000
Force Resolution: 31 bits
Test stroke: 1500 mm (w/o grip)
Stroke resolution: 0.0001mm
Space between columns: 550 mm(680mm, 800mm Optional)
Speed range: 0.2 ~ 330 mm/min adjustable
PC-Port:RJ45(TCP/IP)(software optional)
Data sampling rate:400Hz(Max.)
Hardware safety protection: upper limit, lower limit, emergency stop
Motor type: Servo Motor
Power Supply:3 phase 200~240VAC，70 A
Dimension: 145 x 85 x 295cm
Weight: 2350 kg
Option:
- Display panel: EM2FTP-001 or Software: SM1F0-04 or all (nessesary)
- Long extensometerQC-557
- Grips (nessesary)
