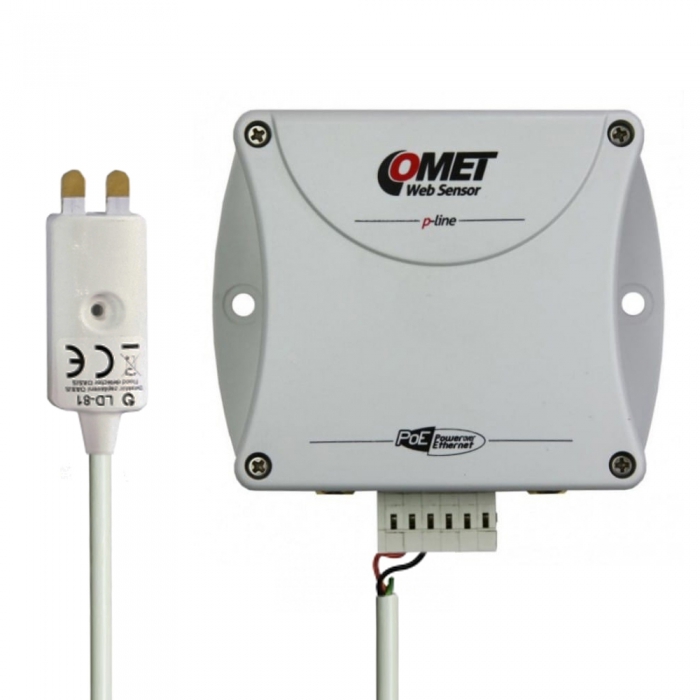

Comet P8653 Web Sensor with PoE - two channels with flood detector and binary inputs (PoE/ 5Vdc, Ethernet)

Measured value: Temperature, Relative humidity, Two-state signal

Temperature sensor:

Measuring range: -55 to +105 °C

Accuracy: according to the connected probe DSxx

Resolution: 0.1 °C

Humidity sensor:

Measuring range: according to the connected probe DSxx

Accuracy: according to the connected probe DSxx

Resolution: 0.1% RH

Flood detector:

Usage Intended: for indoor usage only

Cable length: 2.5 meters (can`t be extended)

Two wire connection: red wire – active, black wire – GND, directly powered from P8653

Binary input:

Parameters of the voltage contact Voltage input level for „L“:< 1,0 V;

Voltage input level for „H“: > 2,5 V;

Internal resistivity of the voltage source: < 2kOhm

Input voltage range: 0 to +30 V

Parameters of the voltage-free contact: Voltage on the unclosed contact: 3,3 V

Current through closed contact: 0,1 mA

Maximum resistivity of the contact: < 5kOhm

Operating temperature: -20 to +60 °C

Channels: 1x external temperature probe nebo 1x connectable temperature+humidity probe

Output: Ethernet

Measuring interval: 2 s

Available temperature units: degrees Celsius, degrees Fahrenheit

Communication protocol: WWW, ModbusTCP, SNMPv1, SOAP, XML

Alarm protocols: E-mail, SNMP Trap, Syslog

Power: Power over Ethernet according to IEEE 802.3af or 5Vdc

Protection class: IP30

Dimensions: 88 x 74 x 39,5 mm

Weight: approx. 125 g

Included in delivery:

P8653

Instruction Manual

Traceable Calibration Certificate

FREE software TSensor for Configuring of the Transmitter

COMET Cloud for 3 Months

Flood detector LD-81

EXTERNAL PROBES ARE NOT INCLUDED IN DELIVERY

Web Sensors P8653 is designed to measure temperature or relative humidity from up to two external probes. This allows to measure values from two different places by one device.

Datasheet

User guide
