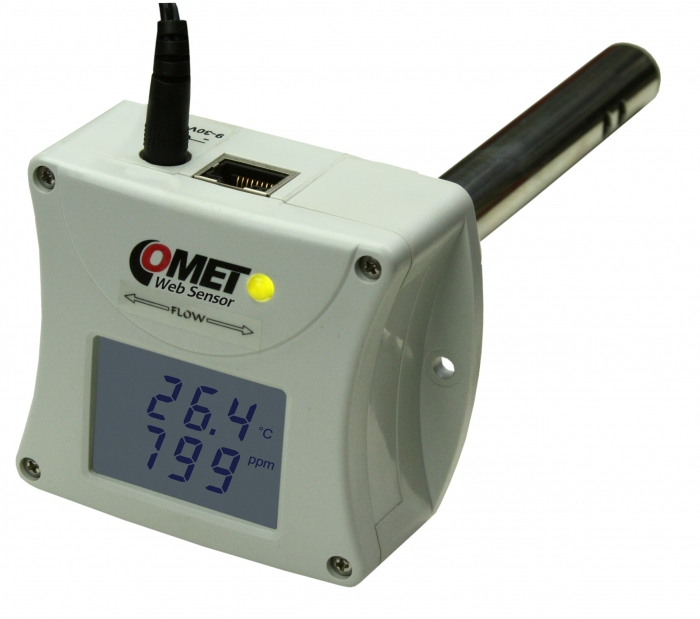

Comet T6545 WebSensor - remote CO2 concentration thermometer hygrometer, duct mount (9-30 Vdc, Ethernet)

Measured value: Temperature, Relative humidity, Counted values (dew point…), CO2

Temperature sensor:

Measuring range: -30 to +60 °C

Accuracy: ±0.4 °C

Resolution: 0.1 °C

Humidity sensor:

Measuring range: 0 to 100 % RH

Accuracy: ± 2.5 % RH

Resolution: 0.1% RH

Dew point:

Measuring range: -60 to +80 °C

Accuracy: ±1.6°C at ambient temperature T<25°C and RH>30%

Resolution: 0.1 °C

CO2 sensor:

Measuring range: 0 to 2000 ppm

Accuracy: ±(50ppm +2% from reading) at 25°C and 1013hPa

Resolution: 1 ppm

Operating temperature: -30 to +60 °C

Channels: internal CO2 sensor

Output: Ethernet

Measuring interval: 15 s

Communication protocol: WWW, ModbusTCP, SNMPv1, SOAP, XML

Alarm protocols: E-mail, SNMP Trap, Syslog

Power: 9-30 Vdc

Protection class: IP30 electronics; IP20 sesors

Dimensions: 89 x 73 x 240 mm; stem length 130 mm

Weight: approx. 260 g

Included in delivery:

T6545

Instruction Manual

Traceable Calibration Certificate

FREE software TSensor for Configuring of the Transmitter

COMET Cloud for 3 Months

POWER SUPPLY IS NOT INCLUDED IN DELIVERY

Datasheet

Manual
