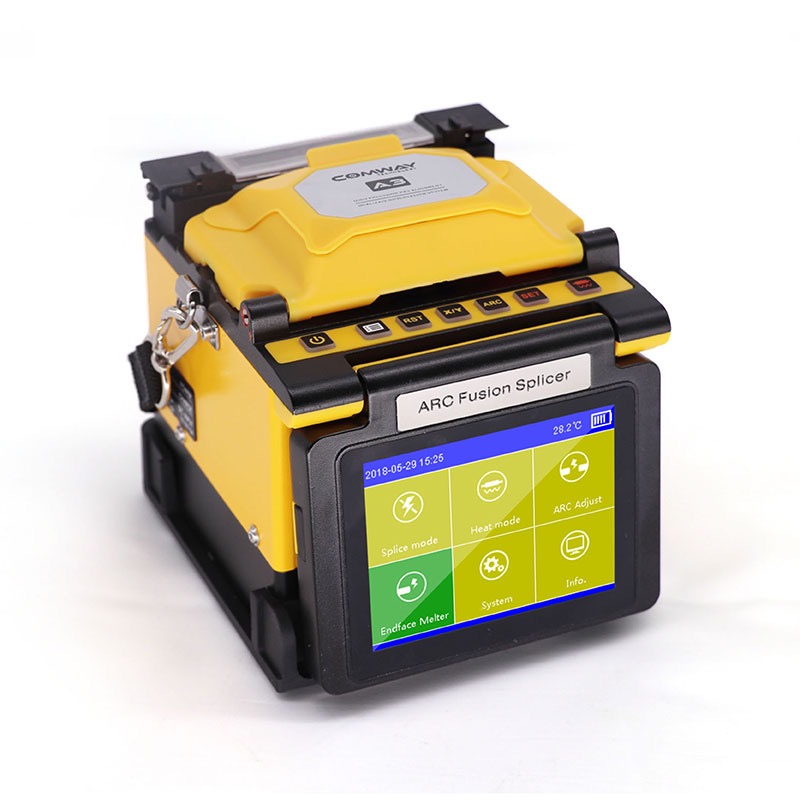

Comway A3 Fusion Splicer (Splicing Time 5~15s)

Size & Weight: D136×W135×H136 (mm), 1.5kg (1.8kg with battery)

Fiber alignment: High Precision PAS Alignment

Fiber type: SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZ/NZDS (ITU-T G.655), BI (ITU-T G.657)

Splice mode: Single fiber

Fiber diameter: Cladding diameter: 80~150µm, coating: 100~1000µm

Cleave length: 250µm cladding diameter: 8~16mm, over 250µm cladding diameter: 16mm

Splicing programs: Max. 100

Splicing time: 5 sec. [SM Fast] program, 15 sec. [SM G652] program

Heating programs: Max. 30

Heating time: Typical 15 sec. (Adjustable)

Splice protector: 10~60mm

Splice image capture: Max. 300

Splice data storage: Max. 20000

Splice loss: SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZ/NZDS: 0.04dB, BI: 0.02dB

Return loss: >>60dB

Loss estimation: Provided

Operation condition: Altitude: 0~5000m, Humidity: 0~95%, Temperature: -20~+50°C, Wind velocity: up to 15m/s

Storage condition: Humidity: 0~95%, Temperature: -40~+80°C (Battery: -20~+40°C)

Tension: 2N

Fiber view: Two 300x cameras observation, 4.1 inch high-light color touch screen

Fiber magnification: 300x for X or Y single axis view, 150x for both X&Y dual axis view

Port: High speed USB

Electrode life: 5000 Splices

Power supply: AC100-240V, 50/60Hz

Battery parameters: 4000mAh High capacity battery, more than 240 times splicing and heating, Full charge within 3 hours
