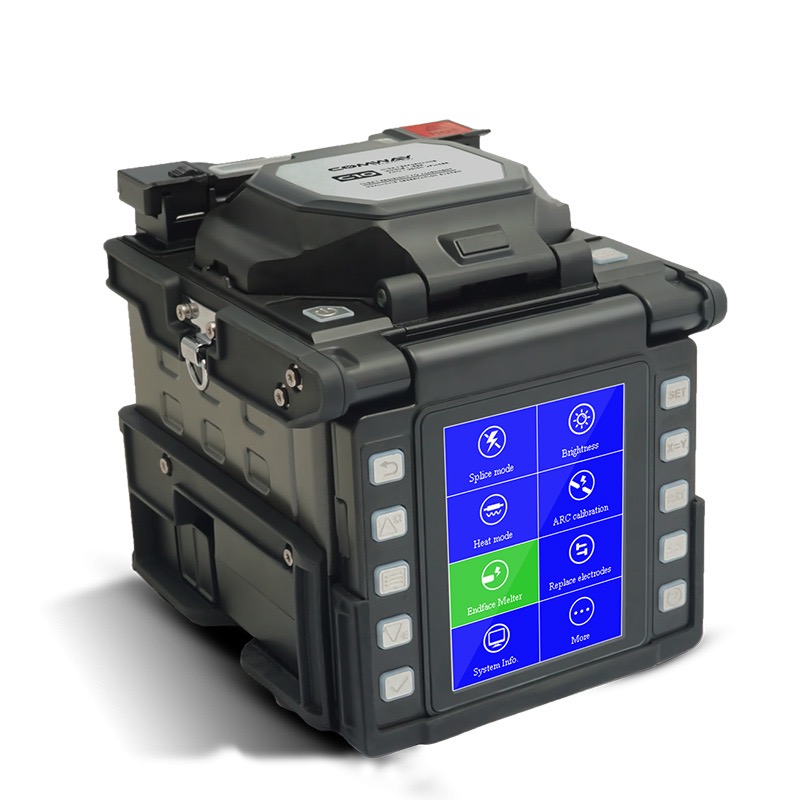

Comway C10 Fusion Splicer (Splicing Time 5~10s)

Size & Weight: D156×W135×H149(mm), 2.0kg (2.5kg with battery)

Fiber Alignment: 6 motors core alignment

Fiber Type: SM(ITU-T G.652), EB(ITU-T G.654), MM(ITU-T G.651), DS(ITU-T G.653), NZ/NZDS(ITU-T G.655), BI(ITU-T G.657)

Splice Mode: Single fiber

Fiber Diameter: Cladding diameter 80~150µm, coating 100~3000µm

Cleave Length: 250µm cladding diameter 816mm, over 250µm cladding diameter 16mm

Splicing Programs: Max. 200

Splicing Time: 5 sec. [SM Fast] program, 10 sec. [SM G652] program

Heating Programs: Max. 30

Heating Time: Adjustable, 8 sec. typical

Splice Protector: 10~60mm

Splice Image Capture: Max. 800

Splice Data Storage: Max. 20000

Splice Loss: SM: 0.01dB, MM: 0.01dB, DS: 0.04dB, NZ/NZDS: 0.04dB, BI: 0.02dB, EB: 0.02dB

Return Loss: >>60dB

Loss Estimation: Provided

Operation Condition: Altitude 0~6000m, Humidity 0~95%, Temperature -20~+50°C, Wind velocity up to 15m/s

Storage Condition: Humidity 0~95%, Temperature -40~+80°C (Battery -20~+40°C)

Tension: 1.96~2.25N

Fiber View: Two 380x cameras observation, 4.3 inch high-light color screen

Fiber Magnification: 760x for X or Y single axis view, 380x for both X&Y dual axis view

Port: High speed USB

Electrode Life: 6000 arc discharges

Power Supply: AC 100-240V, 50/60Hz

Battery Parameters: 8400mAh High capacity battery, more than 500 times splicing and heating
