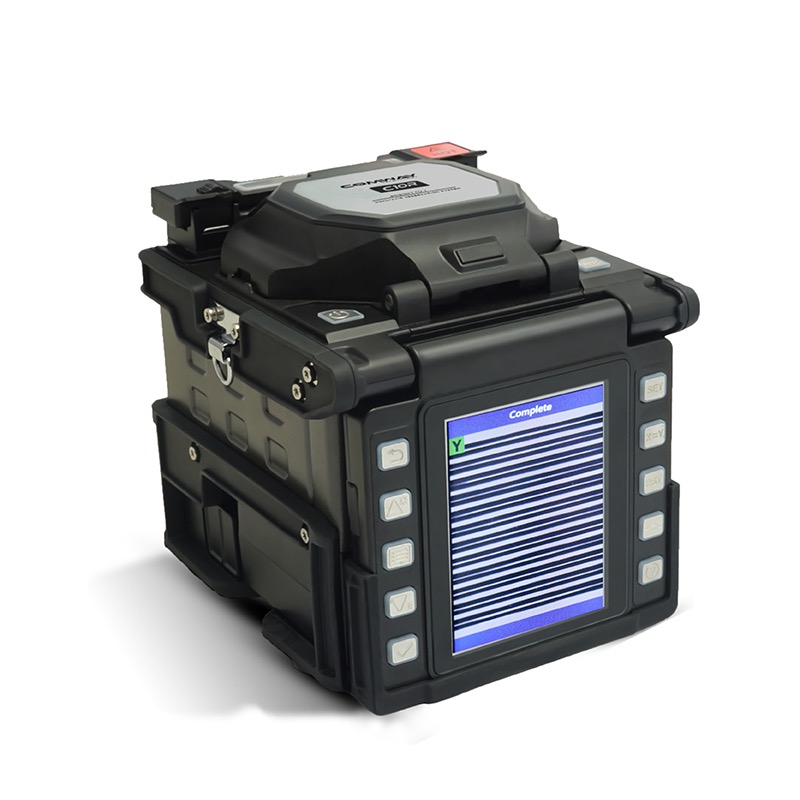

Comway C10R Ribbon Fusion Splicer (Splicing Time 13~16s)

Size & Weight: D156×W135×H149 (mm), 1.7kg (2.5kg with battery)

Applicable fibers: SM(ITU-T G.652), MM(ITU-T G.651), DS (ITU-T G.653), NZ/NZ DS(ITU-T G.655), BI(ITU-T G.657)

Fiber count: Single to 12

Cladding dia.: Single: 125µm / 160µm to 3mm by fiber holder system

Sheath dia.: Ribbon: 125µm / Ribbon fiber thickness 0.25 to 0.4mm

Cleave length: 9mm to 9.5mm

Splice mode: Total: 100 splice modes

Typical splice time: 13sec with SM FAST, 16 sec with SM AUTO

Heating mode: 20 heating modes

Typical tube heating time: 18sec SM FAST

Applicable sleeve: 25~60mm sleeve

Splice image capture: Max. 800

Splice result storage: Max. 10000

Typical splice loss: SM: 0.05dB, MM: 0.03dB, DS: 0.08dB, NZ/NZ DS: 0.08dB, BI: 0.05dB

Return loss: >>60dB

Fiber View: Two axis CMOS camera with 4.1 inch high-light color LCD

Fiber magnification: X/Y (32-100X magnification), or both X and Y simultaneously

Operating condition: Altitude: 0~3800m above sea level, Temperature: -10~+50°C, Wind: 15m/sec, Humidity: 0~95%RH

Tension test: 1.96~2.25N

Electrode life: 2000 splices

Power supply: AC100~240V, 50/60Hz

Battery parameters: 8400mAh high capacity battery, more than 240 times splicing and heating

Terminal: USB 2.0 connector for PC communication

Other features: Time-delay password against theft, ID electrode against fake

Option: GPS location system
