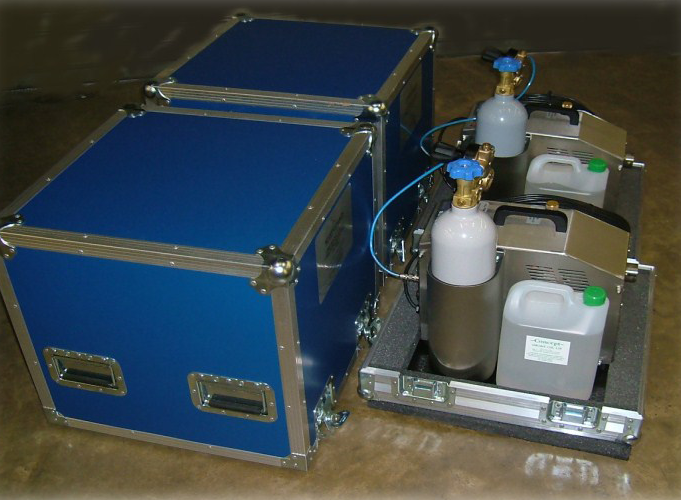

Concept CEL-ALTS-KIT Aircraft Leak Testing System

Specification: Concept ALTS (Aircraft Leak Testing System)

Size (cm) Generator only / In Flight case: 42 x 18 x 35 / 54 x 54 x 60

Weight (kg) - Generator only / In Flight case: 13kg / 49kg

Heat Exchanger (w): 1100w (1.1kw)

Power Supply: 110VAC, 50 - 450Hz

Warm up time from cold (min): 4 mins

Duration at max output before refill (min): 40 mins

Smoke Output (m3 / min @ 1m visibility): 0 - 150

Smoke Reservoir Capacity (nominal ml): 1300 ml

Smoke Particle dia (micron, mass median dia): 0.2 with GSD circa 1.35

Optimum / max gas pressure (bar): 6.9 / 8.2

Remote Operation: Included with every model
