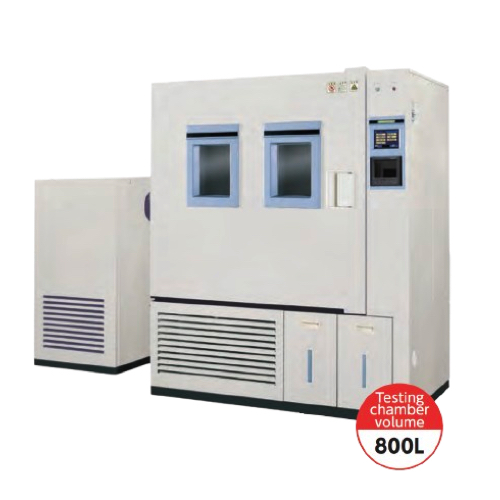

Cosmopia EC-85MHPD Temperature And Humidity Chambers (-40 ~ 100 ℃; 10 ~ 98 %RH; 800L; 40A)

Temperature range: -40 to 100 ℃

Humidity range: 10 to 98 %RH

JTM K09

Temperature / humidity fluctuation: ±0.5 ℃ / ±3.0 %RH

Temperature / humidity gradient (Normal control range): 4.0 / 8.0 ℃ / %RH

Temperature / humidity gradient (Low-temperature/humidity range): 6.0 / 8.0 ℃ / %RH

Spatial temperature / humidity deviation (Normal control range): 3.0 / 5.0 ℃ / %RH

Spatial temperature / humidity deviation (Low-temperature/humidity range): 5.0 / 5.0 ℃ / %RH

Temperature change rate (Drop): 1.5 ℃/min. (86 to -26 ℃)

Temperature change rate (Rise): 3.0 ℃/min. (-26 to 86 ℃)

Time to reach temperature extreme (Drop): Within 70 min. (20 to -40 ℃)

Time to reach temperature extreme (Rise): Within 40 min. (20 to 100 ℃)

Testing chamber volume: 800 L (Width 1,000 x Depth 800 x Height 1,000 mm)

Product dimensions (System): Width 1,400 × Depth 1,170 × Height 1,795 mm

Product dimensions (Dehumidification unit): Width 606 × Depth 907 × Height 1,246 mm

Exterior coating color: Natural gray (Munsell code: 1.0Y8.5/0.5)

Cooling method: Air-cooling, single-stage compression refrigeration

Refrigerant: R404A

Power supply: Three-phase 200V 50/60Hz, Three-phase 220V 60Hz, Three-phase 380V 50Hz

Maximum load current: 40 A

Product weight: System: 520 kg / Dehumidification unit: 100 kg

Guaranteed performance range: Temperature: 5 to 30 ℃, Absolute humidity: 17.5 g/kg or lower (during low-temperature/humidity control)
