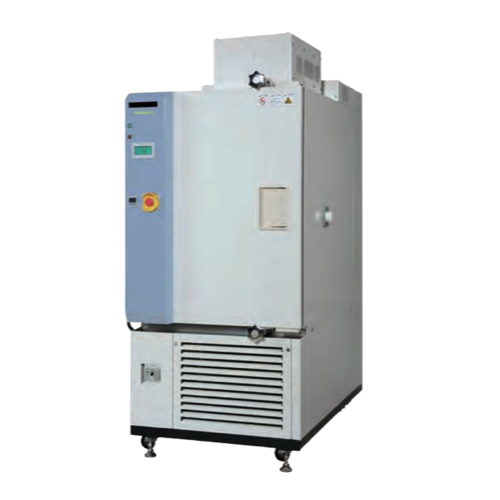

Cosmopia EC-85MTB Temperature chambers (-40 ~ 100 ℃; 784 L; 18 A)

Temperature range: -40 to 100 ℃

JTM K07

Temperature fluctuation: ±0.3 ℃

Temperature gradient: 3.0 ℃

Spatial temperature deviation: 1.5 ℃

Temperature change rate (Drop): 2.0℃/min. (86 to -26℃)

Temperature change rate (Rise): 3.0℃/min. (-26 to 86℃)

Time to reach temperature extreme (Drop): Within 65 min. (20 to -40℃)

Time to reach temperature extreme (Rise): Within 30 min. (20 to 100℃)

Testing chamber volume: 784 L

Testing chamber dimensions: W 1000 x D 800 x H 1000 mm

Product dimensions: W 1200 × D 1,490 × H 2,128 mm

Compressor output: 1.5 kW (inverter control)

Equipment: Casters and level adjusters

Accessories: Shelf support, shelf, and instruction manual

Power supply: Three-phase 200V 50/60Hz, Three-phase 220V 60Hz, Three-phase 380V 50Hz

Maximum load current: 18 A

Product weight: 495 kg
