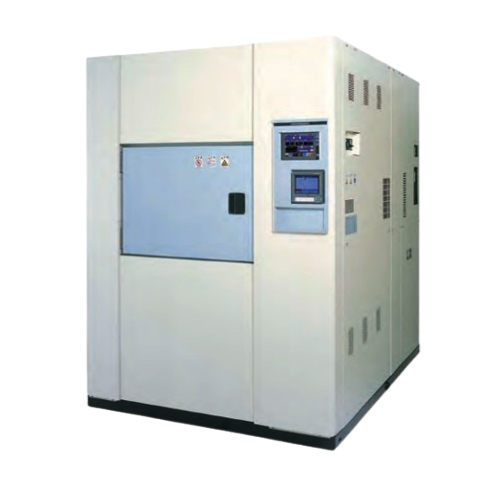

Type: Stationary sample type, cool/hot air switchable, two/three zone switchable
Temperature range (testing chamber):
Low-temperature testing: −70 to 0°C
High-temperature testing: 60 to 200°C
Temperature fluctuation margin: ±0.5°C
Temperature rise time (high-temperature chamber): Room temperature to 200°C: Within 15 min.
Temperature drop time (low-temperature chamber): Room temperature to −75°C: Within 45 min.
Temperature cycle performance:
Cycles: 5 cycles (low-temperature start)
Sample Type: Plastic molded IC
Sample Weight: 5 kg (IC 3.5 kg + dual-stage jig 1.5 kg) (Includes weight of sample loading jig)
Testing chamber temperature / Testing time:
Low temperature: −65°C / 15 min.
Room temperature: —
High temperature: 150°C / 15 min.
Temperature measurement position: Downwind side
Temperature return time: Within 5 min.
Cooling method: Water-cooling
Exterior: Cold-rolled steel plate, natural gray (Munsell code: 1.0Y8.5/0.5)
Testing chamber volume: 70 L
Testing chamber dimensions (W × D × H): 390 × 390 × 460 mm
Product dimensions (W × D × H): 1,300 × 1,555 × 1,900 mm
Permissible sample weight inside testing chamber: 30 kg
Refrigerant type:
High-temperature side: R404A
Low-temperature side: R23
Operational noise: 65 dB(A)
Dry air:
Pressure: 0.4 to 0.7 MPa
Consumption: Approx. 7.6 L(ANR) per cycle
Coolant amount: 4,200 L/h
Power supply: Three-phase 200V 50/60Hz, Three-phase 220V 60Hz, Three-phase 380V 50Hz
Maximum load current / Power supply capacity: 101 A / 35 kVA
Product weight: 1,150 kg
