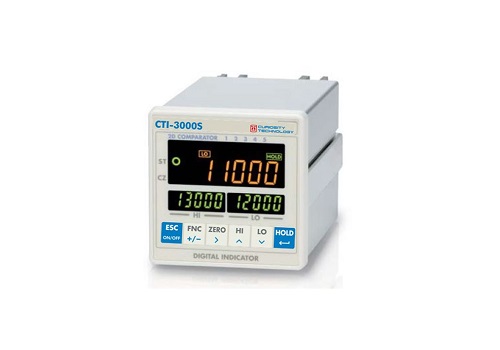

CURIOTEC CTI-3000S Digital High Speed Controller

Technical Spec :

- Input Sensitivity : 0.6 ㎶/Digit (showing minimum guarantee); 0.12㎶/Digit (showing minimum)

-  Range of zero adjust : Approx ± 50% of span adjust value

 - Load cell Excitation:

+  DC 5V max 4 LOAD CELL available (350ohm):

+  DC 2.5 max 8 LOAD CELL available (350ohm):

+  DC 2.5 max 2 LOAD CELL available (120ohm):

+  Input sensitivity setting available on function:

-  Temperature coefficient:  Zero ± 0.5 ㎶/℃ (Typ.); Span ± 30ppm/℃ (Typ.)

-  Non-Linearity:  In 0.02% of Full Scale ± 1D

-  Max measuring Voltage : 15mV

-  Max display : ± 999999

 - Sampling speed : 2000 times/sec

Display:

-  Weight Display : 7segment , 6 digit, Character size : 12.7mm(H); 3 color LED display (orange, green, red)

- Status Display : 15Status mark; 3 color LED display (orange, green, red)

- Max/Min Display : 7segment , 5 digit, Character size : 9mm(H); LED (green)

External input/output:

-  Analog Output:  D/A: ±10V; A/A : 3.2mV/V(±10V)

-  External Input : Zero , Hold, Latch, COMP ON COMP1~COM5

-  External Output:  RS-485(Modbus RTU); 3 pcs comparative output (MOS FET relay output)

-  Power : AC85~250V (50/60hz) freevolt 20VA

-  Operating Temp: . -5℃~40℃

-  Operating Humidity : Less than 85%RH (without condensation)

-  Size:  96(W) × 96(H) × 160(D) mm

OPTION only option available:

-  OP-1:  Parallel BCD output (TR)

-  OP-4:  RS-232C

-  OP-7:  DAV/DAI Analog Voltage / Current output; ±10V & 4~20mA)

-  OP-8:  Ethernet Interface
