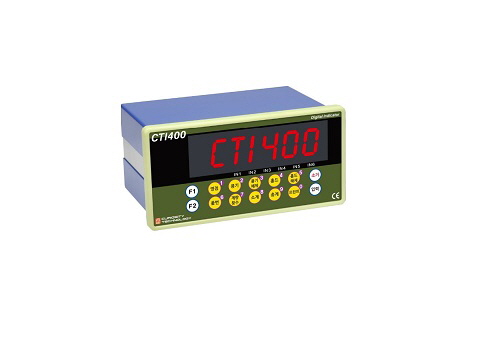

CURIOTEC CTI-400 Digital Weighing Indicator

Analog Part:

Input Sensitivity: Min. 0.1 uV/Digit

Load Cell Excitation: DC 5V

Non-Linearity: 0.001% of Full Scale

Input Signal: Max 3.0 mV/V

A/D Method & Sampling: Max 60 times/sec, Sigma-Delta

Resolution : Internal: 1/2,000,000 (±1,000,000), Display: 1/20,000

Display Part:

Main Display: 7 Segment, 6 Digit Red FND, H: 25.4mm

Status LED: GREEN LED(IN1, IN2, IN3, IN4, IN5, IN6) Minus() Display

Under Zero Balance: Minus (-) Display

General Part:

Power Supply: Free Voltage (AC100V~ 240V, 50/60 Hz)

Operating Condition: Temperature: -10°C~+40°C, Humiduty: Under 85% F

Size/Weight: 200(W) × 100(H) x 127(D) mm / 1.23 kg

Interface: RS-232C & CURRENT, MODE BUS (Option)

External Input: 6 EA

Relay Output: None

Option: Analog Output 0~10V, 4~20mA / RS232C, RS422, RS485 BCD INPUT/ BCD OUTPUT / ETHERNET / SD Memory Card
