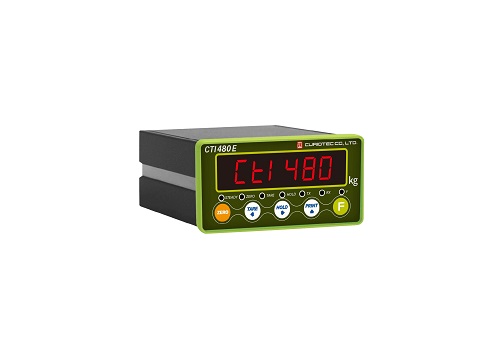

CURIOTEC CTI-480E Digital Weighing Indicator

Analog Part:

Input Sensitivity: Min. 0.1 uV/Digit

Load Cell Excitation: DC 5V

Non-Linearity: 0.001% of Full Scale

Input Signal: Max 3.0 mV/V

A/D Method & Sampling: Max 60 times/sec, Sigma-Delta

Resolution : Internal: 1/1,000,000, Display: 1/20,000

Display Part:

Main Display: 7 Segment, 6 Digit Red FND, H: 16.2mm

Status LED: STEDY, ZERO, TARE, OUT1, OUT2, OUT3, OUT4

Under Zero Balance: Minus (-) Display

General Part:

Power Supply: Free Voltage DC24V/12W(SMPS)

Operating Condition: Temperature: -10°C~+40°C, Humiduty: Under 85% F

Size/Weight: 96(W) x 48(H) x 101(D) mm / 0.3 kg

Interface: Standard RS422&RS485 Special Order: RS-232C 4 EA

External Input: 4 EA

Relay Output: None

Option: 4~20mA, 0~10V(User Selectable)
