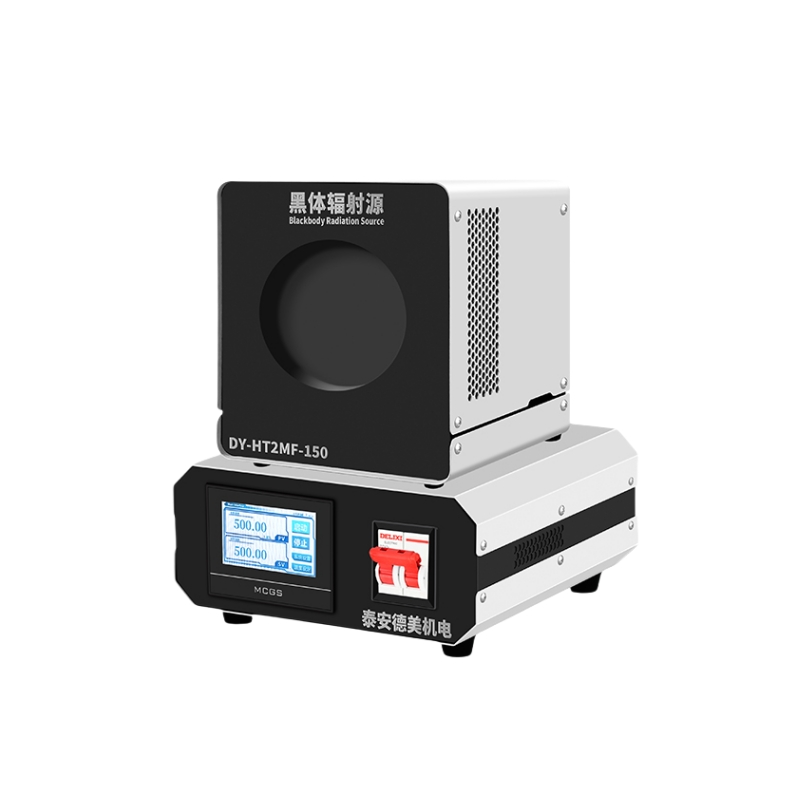

D-MEI DY-HT2MF-150 Split Medium temperature surface source blackbody furnace (+5℃-500℃)

Temperature Range: Room temperature +5℃-300℃ / Room temperature +5℃-500℃

Operating Method: Touch Screen

Control Mode: PID Automatic Control

Temperature Resolution: 0.1℃/0.01℃

Radiating Surface Area: Φ150mm

Emissivity: ≥0.95℃

Temperature Stability: Not greater than 0.15℃ and 0.15%t(bigger one in two,t is the raidiation source temperature

Temperature Uniformity: Assuming the radius of the target surface is r, all temperature points t within the half price 2r/3 area must satisfy 丨t-tc丨≤丨tc 丨*0.5%+0.2℃, where tc is the temperature of the center point of the target surface (within the 2/3 center area)

Power Supply: 220V AC 10A

Power: 800W

Wire diameter: ≥1.5 square

Volume (length × width × height)

Host: 215mm × 240mm × 290mm

Temperature controller: 300mm × 280mm × 130mm

Communication: RS232

Emissivity adjustable (adjustable between 0.92~0.99)

Weight
Host: 15.2Kg

Temperature controller: 3.2Kg
