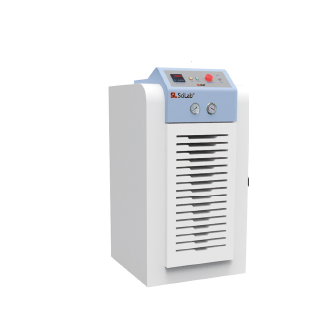

DaiHan WiseCircu® Chi-20 Heavy-duty Refrigerated External Circulator (-20°C~+40°C, 17 L)

Name: DaiHan WiseCircu® Chi-20 Heavy-duty Refrigerated External Circulator (-20°C~+40°C, 17 L)
Brand: DaiHan

ModelWiseCircu® Chi-20

P/NSL.Chi0025

OriginKorea

Warranty12 months

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Temp.Range: －20°C~+40°C

Stability: ±0.2°C (at 15°C)

Cool-Fluid.Filling Volume: 17 Lit Max

Usseful for 1~20 Lit Evaporator

Refrigerator Capacity(HP): 1/2HP

Lid & Top Opening Dia.: Φ 100mm

Fluid In/Out-let Connector: ISO RC 1/2" (English System AG 1/2") Thread, Stainless steel

Pump:

+ Max Flow-rate: 20Lit/min

+ Max Pressure: 1.0 bar

+ Max Lift: 8m

Cooling Capacity:

+ at + 20 °C: 1.7 kW

+ at 0 °C: 0.87 kW

+ at -20 °C: 0.32 kW

External Dimension: 450 x 650 x h900 mm

Material: Internal: Stainless-steel, External Powder Coated steel

Electrical Reqts. : 1 Phase, 230 V, 50Hz

Datasheet
