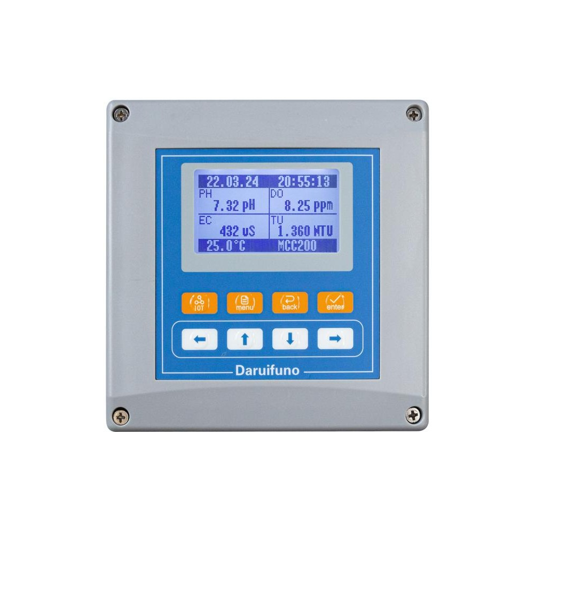

Display Screen:3.2-inch black& white graphicLCD display
back light and contrast: can be adjusted.
Instrument Operation: PET key panel, 8 keys
System Language: English and Chinese
Power-off Protection: All setting parameters of the instrumentare power- off protection, and the data is retained defnitely.
Time Display: Year/Month/day,hour/minute/second
History Logs: Record 7800 history data, support data download (Optional The recording interval: can be set between 1~999 minutes
Menu Password: six-digit password settings
Relay Output: Wash control, max. Load 3A/250VAC
Output extension type (Optional): Relays, current, communication
Digital Communication: Communication interface: 2-wire RS485 interface, Modbus RTU
Protection Grade: IP66
Working Temperature: 0~60℃, RH <95% (no condensation)
Storage Temperature: -20~70℃, RH<55%(no condensation)
Instrument Dimension: 144*144*120mm
Installation Method: Panel, wall-mounted, pipe clamping
Housing Material: Enhanced ABS
Electrical Interface: 3 M1 2*1 .5 glan heads reserved with a wire diameter 3~6.5mm
Dimension: 260*230*180mm
Power: DC:18~36V 1-4 digital sensors can be connected
