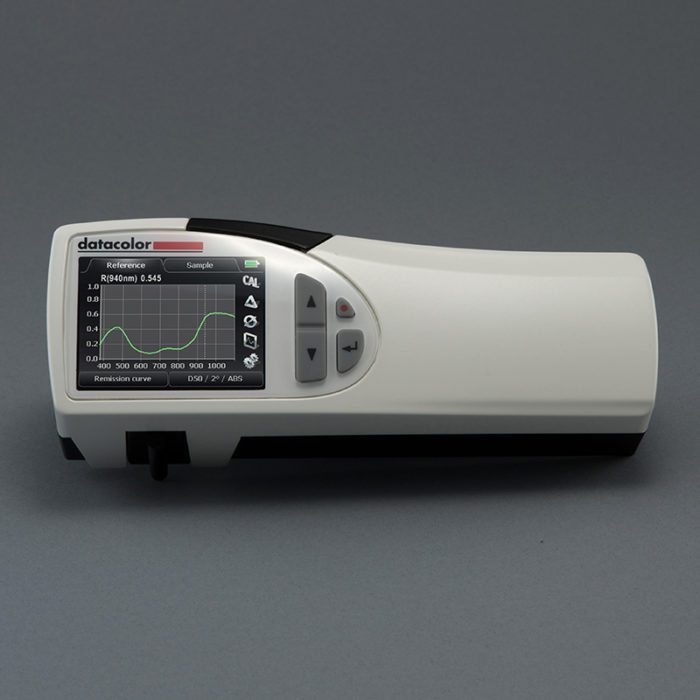

Datacolor Datacolor 45IR Portable spectrophotometer (380 ~ 1100 nm)

Instrument Type: Portable Spectrophotometer

Measurement Geometry: 0º:45º x to DIN 5033

Light Source: Tungsten

Wavelength Range: 380 to 1100 nm

Effective Bandwidth: 10 nm

Wavelength Resolution: 3.3 nm

Spectral Analyzer: 256 pixel diode array

Color Repeatability: Density: 0.01D; Colorimetric: 0.3 CIElab dE*ab; Near IR:  0.3%R (700 to 1000 nm)

Inter-Instrument Agreement: Density: 0.01D; Colorimetric: 0.3 CIElab dE*ab; Near IR: +/-0.5%R (700 to 1000 nm)

Aperture Plates: 3mm measuring

Operating Environment: Absolute Operating Environment RS232; '0º to 40º C, 20-85% RH, non-condensing

Physical Specifications:

Weight: 1.0 lbs (480g)

Dimensions: 2.6 x 2.2 x 7.5 (65 x 55x 190mm)

Power Requirements: 7.5DC (from PS)/4.8DC (from BAT)

Power Consumption: 2.0A (from PS)/2100mAh (from BAT)

Storage: 0º to 40º C

Additional Technical Specifications:

Data Interface: USB

Spectrometer Principle: Monolithic, compact spectrophotometer with imaging grating

Battery: Long Life NiMH

Effective Bandwidth: 10nm
