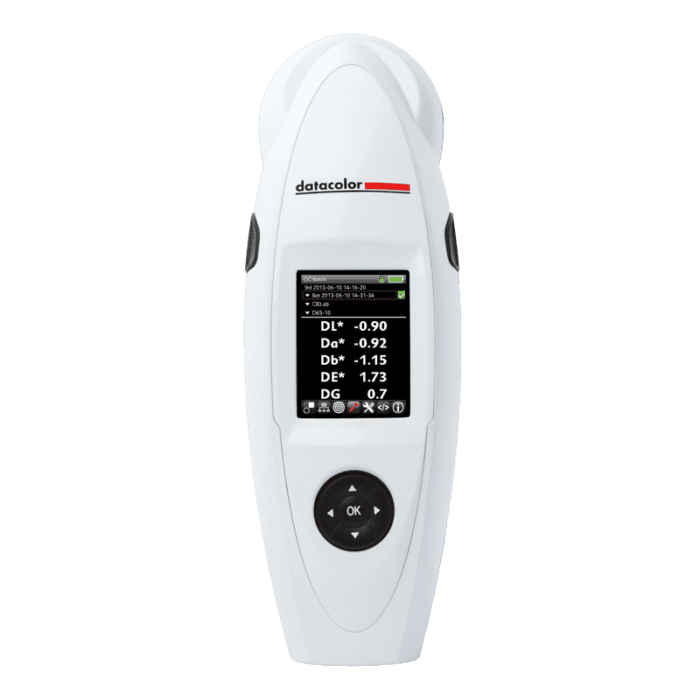

Instrument Type: Portable Spectrophotometer
Measurement Geometry: 45° illumination, 0° viewing.
Light Source: LED solid-state circumferential illumination
Wavelength Range: 400 nm – 700 nm
Effective Bandwidth: 10nm
Spectral Analyzer: Dual 256 diode array
20 read repeatability on white tile using double flash (CIELAB) (1): < 0.01 E*ab on white ceramic tile
Inter-instrument agreement: reflectance measurements (CIELAB)(1,2 &3): 0.15 E*ab avg of 12 BCRA tiles, 0.25 E*ab max on any BCRA tile
Aperture Size: MAV 11 mm target window (8 mm measurement)
Functional Operating Environment (2): 10 to 40 C up to 85% RH, non-condensing
Physical Specifications:
Display: Color LCD Backlit (2.8″, 240 x 320 pixels)
Weight: 1.8 lbs (816 g)
Power Requirements: 5Vdc, 3.2A (input to the 45G) 100-240 VAC (input to the AC power adapter) 50/60Hz, 0.6A input
Power Consumption: 3.2A
Additional Technical Specifications:
Data Interface: USB, Bluetooth wireless
Spectrometer Principle: Master concave holographic grating
Battery: Rechargeable Li-Ion > 2,000 measures/charge
Gloss Repeatability: -
Gloss Reproducibility: -
Color Systems:: CIELab, CIELch, Lab (h), XYZ, Yxy
Color Difference:: E*, E (h), E94, ECMC (2:1, 1:1, adjustable l:c), E2000
Indices: Metamerism, CIE, Whiteness (CIE an E313), Yellowness (D1925 and E313)
Illuminants: D50, D55, D65, D75, A, C, U3000, Horizon, F2, F7, F11
Data Storage: > 2,000 standards w/ Tolerances, max 10,000 batches
Languages: English, French, German, Portuguese Simplified Chinese and Spanish
Gloss: -
