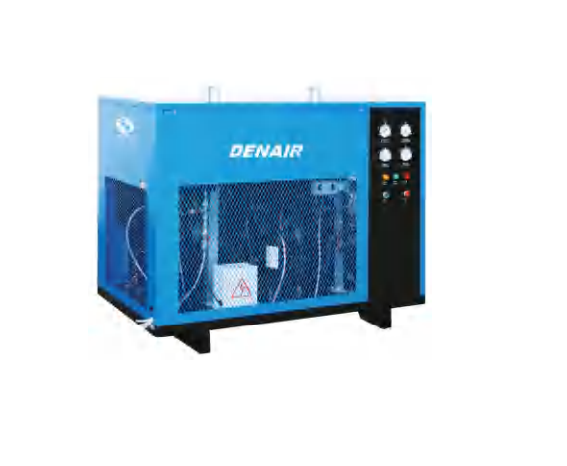

Denair DAD-2HTF Refrigerated Compressed Air Dryer (2.4 m³/min; 0.85 kW)

Capacity (m³/min): 2.4

Voltage (V/Hz): 220/50

Compressor Power (kW): 0.85

Fan Power (W): 90

Air In/Outlet Pipe Diameter: ZG1

Weight (kg): 78

Dimensions LxWxH (mm): 700x450x830

Inlet temperature: ≤ 80°C (recommended ≤ 45°C)

Cooling method: Air-cooling

Inlet pressure: 4 ~ 13 bar

Pressure drop: ≤ 0.3 bar

Dew point: 2 ~ 10°C

Refrigerant: R22

*)m³/min is measured at 1.0 Bar(a), 20℃ ambient temperature and 0% Relative Humidity.

Specifications are subject to change without notice.
