● Total dimension: 1882×900×1600mm
● Input power: single-phase, three-wire AC 220V±10% 50Hz/60Hz
● Output power: AC 220V safety socket output DC 24V safety terminal output
■ Optional
● Computer, computer table
● PLC module
● Air compressor

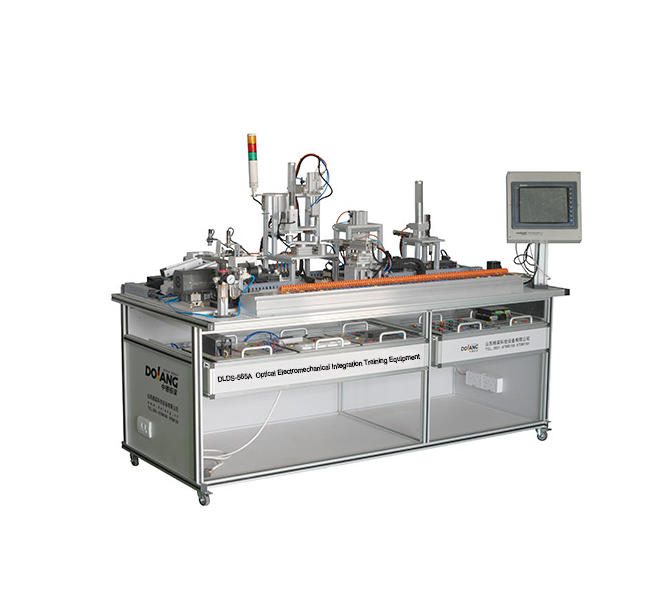

DLDS-565A Optical Electromechanical Integration Training System used in teaching, according to the working process direction, mode of work-integrated learning plan teaching activities, complete the following tasks:
1）Installation and commissioning project of the Pneumatic system: Select and use pneumatic actuators such as single out rod cylinder, single-out double rods cylinder, rotating cylinder and pneumatic control components such as single control electromagnetic reversing valves, double control electromagnetic reversing valves and magnetic switch in this equipment configuration. Can complete the following pneumatic technical working tasks:
●Installation of pneumatic direction control circuit;
●Installation of pneumatic speed control circuit;
●Installation of swing control circuit;
●Installation of pneumatic sequence control circuit;
●Installation of manipulator devices;
●Installation and commissioning of pneumatic system;
2）The installation of electrical control circuit and PLC programming project: Select and use PLC module, inverter module, command switch and sensor of this equipment configuration. Can complete the following PLC application technical working tasks:
●Connection and control programming of motor positive and negative reversing control circuit;
●Connection and control programming of motor speed regulation control circuit;
●Pneumatic direction control programming;
●Pneumatic sequence action control programming;
●Pneumatic robot control programming;
●Belt conveyor control programming;
●Mechanical and electrical integration equipment control programming;
●Automatic production line control programming.
●PPI network communication
3）The installation and commissioning project of mechanical and electrical equipment. Select and use mechanical and electrical integration equipment parts, PLC module, inverter module, command switch, and sensor, etc. can complete the following electromethanical equipment installation and mechanical and electrical integration technical working task:
●Adjustment of transmission device coaxiality; Installation and adjustment of belt conveyer;
●Carrying manipulator equipment installation and commissioning;
●Installation and commissioning of object sorting equipment;
●Installation and commissioning of the feeding equipment;
●Automatic production line equipment installation and commissioning.
4）Automatic control system installation and commissioning project. Select and use mechanical and electrical integration equipment parts, PLC module, inverter module, command switch, and sensor, etc. can complete the following electromethanical equipment installation and mechanical and electrical integration technical working task:
●Installation and commissioning of a variety of sensor;
●Automatic control of the manipulator;
●Automatic control of belt conveyer;
●Automatic control of mechanical and electrical integration equipment;
●Installation and commissioning of PLC control system;
●Installation and commissioning of automatic production line
5) PLC, industrial communication network installation and debugging Systems use Siemens S7-200 PLC as the main controller, itself integrated RS485 communication port have PPI network communication function, based on the network communication function, industrial field bus communication technology training to complete the following tasks:
●The PPI network hardware connection and debugging
●The PPI network parameters setting and debugging
●Reading and writing programming and debugging of complexity PPI network data based on the many sets of Siemens S7-200 PLC
6) Automatic control system installation and commissioning project. Select and use mechanical and electrical integration equipment parts, PLC module, inverter module, command switch, and sensor, etc. can complete the following electromethanical equipment installation and mechanical and electrical integration technical working task:
●Installation and commissioning of a variety of sensor;
●Automatic control of the manipulator;
●Automatic control of belt conveyer;
●Automatic control of mechanical and electrical integration equipment;
●Installation and commissioning of PLC control system;
●Installation and commissioning of automatic production line
DLDS-565A Optical Electromechanical Integration Training System use for assessment and skill competition, the professional abilities that can examine:
●Assembly and adjustment ability of mechanical components;
●Installation and commissioning ability of mechanical and electrical equipment;
●Circuit installation capacity;
●Installation and commissioning ability of pneumatic system;
●Control program’s write ability of the electromechanical integration equipment;
●Installation and commissioning ability of automatic control system;
PLC module I/O port of this training evaluation device, terminals of converter , the common module and the terminals of the PLC, they all connect with safety socket, use safety plug wire connect circuit ; Each command switch, photoelectric switch, sensors and the circuit of instructions components , they are connect through the terminals. Insertion and removing line connection circuit combine with terminal row connection circuit, and the combination of both guaranteed the training of, formed and consolidated, it not only ensure train, form and solidify of student basic skills, also ensure the fast, safety and reliability of electrical connection.
Datasheet
● The system is composed of aluminum workbench, feeding and testing unit, manipulator, processing unit, assembly unit belt conveyor and sorting unit.
● Modular structure, composed of PLC, frequency converter, HMI, power supply, stepper motor, sensors and actuator. We can flexible combine modules, installation and debugging according to the training needs. According to the selected components and the installation location, equipment can be composed of different products and production processes equipment.
● Controlled by more PLCs. Multi-master PC/PPI communication cable(Intermediate belt conversion support network).
● The system can realize distribution control by serial communication mode to assembling production equipment having real productive function, it can also realize system control by PLC master station and remote I / O system
