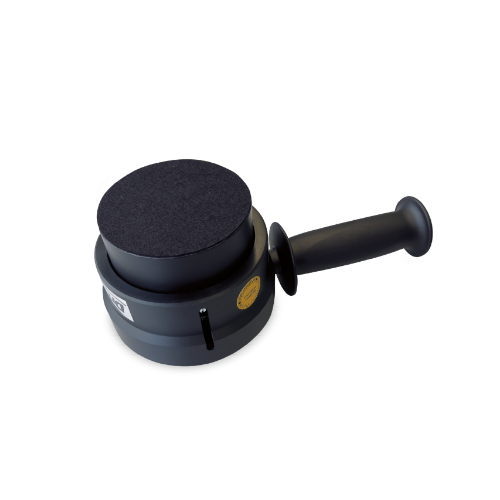

DriveTest BIA1 Closing Force Measuring Device for Bus and Train Doors (25~310 N; 1 N)

- Original BIA Class 1:

Measuring range: 25 ... 310 N

Accuracy: +/– 3 N or 3% of reading

Resolution: 1 N

Stiffness: 10 N/mm

Gap width: 115 mm / 4.5"

Diameter: 100 mm / 3.9"

Measuring principle: DMS transducer

Acquisition frequency / rate: 250 Hz / 4 ms

Power supply: battery 9 V block, e.g. 6LR61

Battery voltage monitoring: yes

Operating temperature range: -10 to +40 °C / 14 to 104 °F

Storage temperature range: -40 to +50 °C / -40 to 122 °F

Humidity: max. 90% rel. h, non-condensing.

Dimensions: 260 x 130 x 115 mm / 10.2 x 5.1 x 4.5"

Weight: 2.1 kg / 4.6 lb

- Display device SEB2:

Data logger unit with LCD display and LED status indicators, control button, serial interface

Optional PC-controlled measurement

9 V battery supply

Real time clock

Memory for 100 measurements

Sensor and PC interface

Peak value display and effective power display

Rating display i. O./n. i. O.

PC evaluation software PinchPilot

Multilingual (DE, EN, IT, FR, ES)

Graphic representation of the force curve

Calculation of the standard-relevant characteristic values

Evaluation according to different guidelines possible

Custom policy adjustable

Log printout

Data export (Excel, CSV, PDF)

Optional measuring point identification

- System requirements software PinchPilot (see tab Software/App)

Delivery Scope:

1 x Closing force measuring device BIA class 1 with 2.5 m connection cable

1 x Display device SEB2 separate measured value acquisition module with LCD and LED display membrane key and serial interface

1 x 9V block battery

1 x Transport case with foam insert for the complete scope of delivery

1 x PC connection cable (USB)

1 x USB data stick with PC evaluation software PinchPilot and documentation

1 x Manual

1 x ISO calibration certificate
