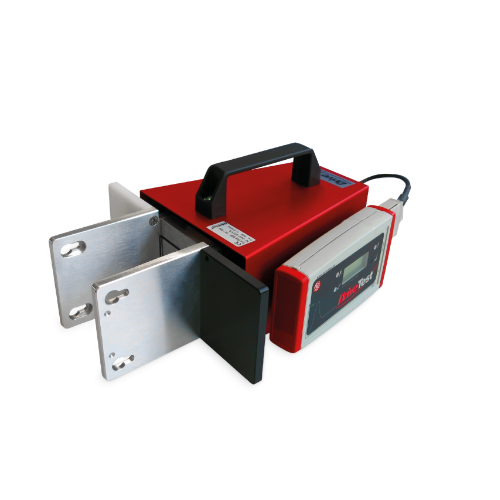

DriveTest BIA600 Closing Force Measuring Device for rail vehicle doors (0~700 N)

- BIA600:

Application of force: on both sides

Measuring range: 0 ... 700 N

Accuracy:

+/– 3 N (0–100 N)

+/– 3 % (>100 N)

Spring rate: 10 N/mm

Opening width: 90 mm / 3.5"

Area: 100 x 100 mm / 3.9 x 3.9"

Force sensor: DMS bridge

Dimensions: 320 x 250 x 110 mm / 12.5 x 9.8 x 4.3"

Weight: 3.0kg / 6.6 lb

- Display device SEB2:

Data logger unit with LCD display and LED status indicators, control button, serial interface

Optional PC-controlled measurement

9 V battery supply

Real time clock

Memory for 100 measurements

Sensor and PC interface

Peak display

Rating display i. O./n. i. O.

- Spacers:

Complete set for all opening widths according to EN 14752:2015

Automatic detection of the spacers used

Automatic limit value adjustment according to opening width

Easy to use, quick assembly without tools

Robust design, low weight, POM

Together with BIA 600 sensor, SEB2 in a carrying case

- PC evaluation software PinchPilot:

Multilingual (DE, EN, IT, FR, ES)

Graphic representation of the force curve

Calculation of the standard-relevant characteristic values

Evaluation according to different guidelines possible

Custom policy adjustable

Log printout

Data export (Excel, CSV, PDF)

Optional measuring point identification

- System requirements software PinchPilot (see tab Software/App)

Delivery Scope:

1 x Closing force measuring device BIA600 incl. connection cable

1 x Indicator SEB2 data logger unit with LCD display and LED status indicators, control button, serial interface

1 x 9V battery

1 x Spacer (4 pieces) according to EN 14752:2015

1 x Transport case with foam insert for the complete scope of delivery

1 x PC connection cable (USB)

1 x PinchPilot PC software, suitable for Windows XP, Vista, W7, W8, W10

1 x User Manual

1 x ISO calibration certificate
