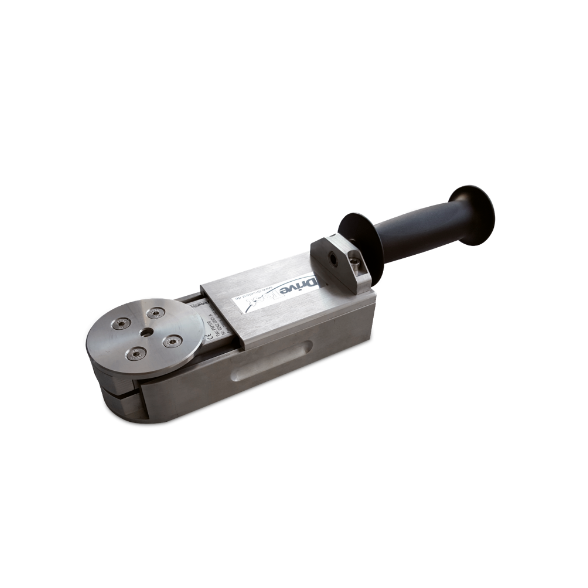

DriveTest FM100 Closing Force Transducer for Doors and Gates (0~2000 N)

-FM 100:

Measuring range: 0 ... 2000 N

Accuracy: +/– 3 N or 3 % of reading

Resolution: 1 N

Stiffness: 500 N/mm

Gap width: 50 mm / 1.9"

Diameter: 80 mm / 3.1"

Measuring principle: DMS transducer

Memory: 80 measurements

Acquisition frequency/rate: 500 Hz / 2 ms

Power supply SEB2: battery 9 V block, e.g. 6LR61

Battery voltage monitoring: yes

Environmental conditions:

Operating temperature range: -10 to +40 °C / 14 to 104 °F

Storage temperature range: -40 to +50 °C / -40 to 122 °F

Humidity: max. 90% rel.H, non-condensing

Dimensions: 210 x 80 x 50 mm / 8.2 x 3.1 x 1.9"

Weight: 2.1kg / 4.6 lb

- Display device SEB2:

Data logger unit with LCD display and LED status indicators, control button, serial interface

Optional PC-controlled measurement

9 V battery supply

Real time clock

Memory for 100 measurements

Sensor and PC interface

Peak value display and effective power display

Rating display i. O./n. i. O.

- PC evaluation software PinchPilot:

Multilingual (DE, EN, IT, FR, ES)

Graphic representation of the force curve

Calculation of important parameters

Evaluation according to different guidelines (standards)

Possibility of entering self-defined guidelines

Log printout

Data export (Excel, CSV, PDF)

-System requirements software PinchPilot and App (see tab Software/App)

Delivery Scope:

1 x Closing force transducer FM100 with 2.5 m / 8.2 ft connection cable

1 x Separate measured value acquisition module (SEB2 display device) with LCD display, LED display, Membrane button and serial interface

1 x 9V block battery

1 x Transport case with foam insert for the complete scope of delivery

1 x PC connection cable (USB)

1 x USB data stick with PC evaluation software PinchPilot and documentation

1 x Manual

1 x ISO calibration certificate
