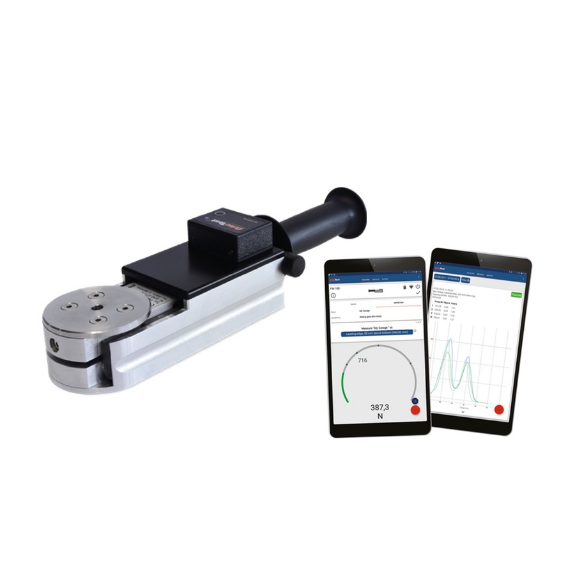

DriveTest FM100BT Closing Force Measuring Device for Doors and Gates (0~2000 N)

- FM100BT: Bluetooth

Measuring range: 0 ... 2000 N

Accuracy: +/– 3 N or 3% of reading

Stiffness: 500 N/mm

Gap width: 50 mm / 1.9"

Diameter: 80 mm / 3.1"

Measuring principle: DMS transducer

Power supply: 5 V DC via USB max. 500 mA

Lithium polymer battery 350 mAh

Battery life under full load: more than 10 hours (continuous measurement)

Environmental conditions:

Operating temperature range: -10 to +40 °C / 14 to 104 °F

Storage temperature range;

possible: -40 to +50 °C / -40 to 122 °F

ideal: +10 to +25 °C / 50 ... 77 °F

Humidity: max. 90% rel. humidity, non-condensing

Dimensions: 210 x 80 x 50 mm / 8.2 x 3.1 x 1.9"

Weight: 2.1kg / 4.6 lb

- PC evaluation software PinchPilot:

Multilingual (DE, EN, IT, FR, ES)

Graphic representation of the force curve

Calculation of important parameters

Evaluation according to different guidelines (standards)

Possibility of entering self-defined guidelines

Log printout

Data export (Excel, CSV, PDF)

- App downloadable from Google Play Store:

Force Meter - easy-to-use app with automatic guidelines and standards updates

Time saving - immediate feedback on the measurement result including simpler report generation

Paperless office - reduces paper and the associated costs and protects the environment

Can be used individually - integration of the customer's signature possible

- System requirements software PinchPilot and App (see tab Software/App)

Delivery Scope:

1 x Closing force measuring device FM100-BT

1 x App Force Meter available for download

1 x Software PinchPilot (USB stick)

1 x USB cable

1 x Manual

1 x ISO calibration certificate

1 x Transport case with foam insert
