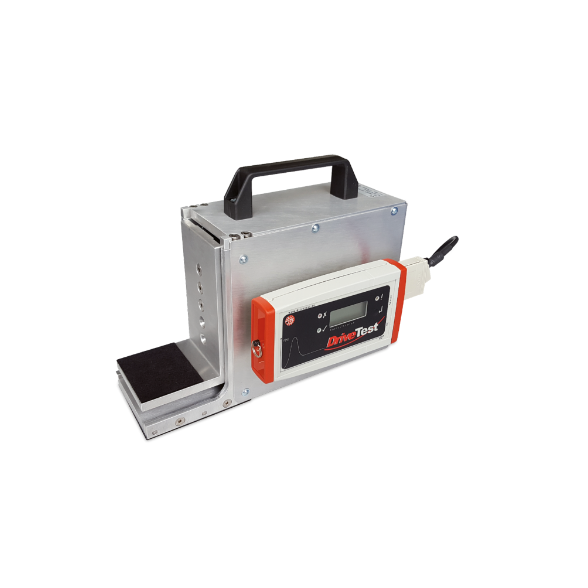

DriveTest FM202 Closing Force Measuring Device sliding roofs,window lifters,doors,steps (0~600 N)

-FM202:

Application of force:on one side

Measuring range: 0 ... 600 N

Accuracy: +/– 3 N (0–100 N) +/– 3 % (>100 N)

Spring rate: 10 N/mm

Gap width: 40 mm / 1.5" minimum

Area: 80 x 80 mm / 3.1 x 3.1"

Measuring principle: DMS bridge

Dimensions: 100 x 300 x 190 mm / 3.9 x 11.8 x 7.4"

Weight: 4.2kg / 9.2 lb

- Display device SEB2:

Data logger unit with LCD display and LED status indicators, control button, serial interface

Optional PC-controlled measurement

9 V battery supply

Real time clock

Memory for 100 measurements

Sensor and PC interface

Peak value display and effective power display

Rating display i. O./n. i. O.

- PC evaluation software PinchPilot:

Multilingual (DE, EN, IT, FR, ES)

Graphic representation of the force curve

Calculation of important parameters

Evaluation according to different guidelines (standards)

Possibility of entering self-defined guidelines

Log printout

Data export (Excel, CSV, PDF)

- System requirements software PinchPilot (see tab Software/App)

Delivery Scope:

1 x Closing Force Measuring Device FM202

1 x Display device SEB2 separate measured value acquisition module with LCD display, LED display, membrane key and serial interface

1 x 9 V block battery

1 x Transport case with foam insert for the complete scope of delivery

1 x PC connection cable (USB)

1 x USB stick with PC evaluation software PinchPilot and documentation

1 x Manual

1 x ISO calibration certificate
