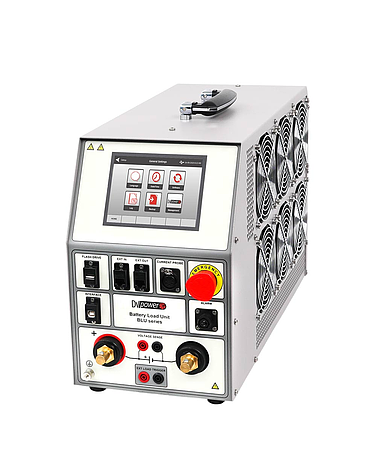

DV Power BLU200A Battery Load Units

Weight – 14.5 kg (32 lbs)

Dimension: 560 x 221 x 355 mm 22 x 8.7 x 14 in

Discharge power – up to 19.7 kW

Discharge current – up to 240 A

Internal voltage measurement:

Range: 0 – 300 V DC

Resolution: 0.1 V (0.002 V up to 60 V, 0.02 V up to 300 V)*

Typical accuracy: ± 0.5% of reading ± 0.1 V

Internal current measurement:

Range: 0 – 300 A DC

Display range: 0 – 2999.9 A DC

Resolution: 0.1 A

Basic accuracy: ± (0.5 % of reading + 0.1 A)

Battery voltage: 5.55* – 300 V DC

Constant current range (Const I): 0 – 240 A DC (19.7 kW)*

Constant resistance (Const R): 0.2 – 300 Ω (0.2 – 3000 Ω)*

Constant power (Const P):

Range: 0 – 19.7 kW*

Resolution: 0.01 kW

Display size: 5.7 inch color touch screen display

Range / Resolution:

Current: 0 – 2 999.9 A DC / 0.1 A

Voltage: 0 – 999.9 V DC / 0.1 V

Capacity: 0 – 9999.9999 Ah / 0.0001 Ah

Time: 00h:00m:00s - 23h:59m:59s / 1 sec

Environment conditions:

Operating temperature: -20 °C to +55 °C / -4 °F to +131 °F

Storage & Transportation temperature: -40 °C to +70 °C / -40 °F to +158 °F

Relative humidity: up to 95%, non-condensing

Pollution degree: 2
