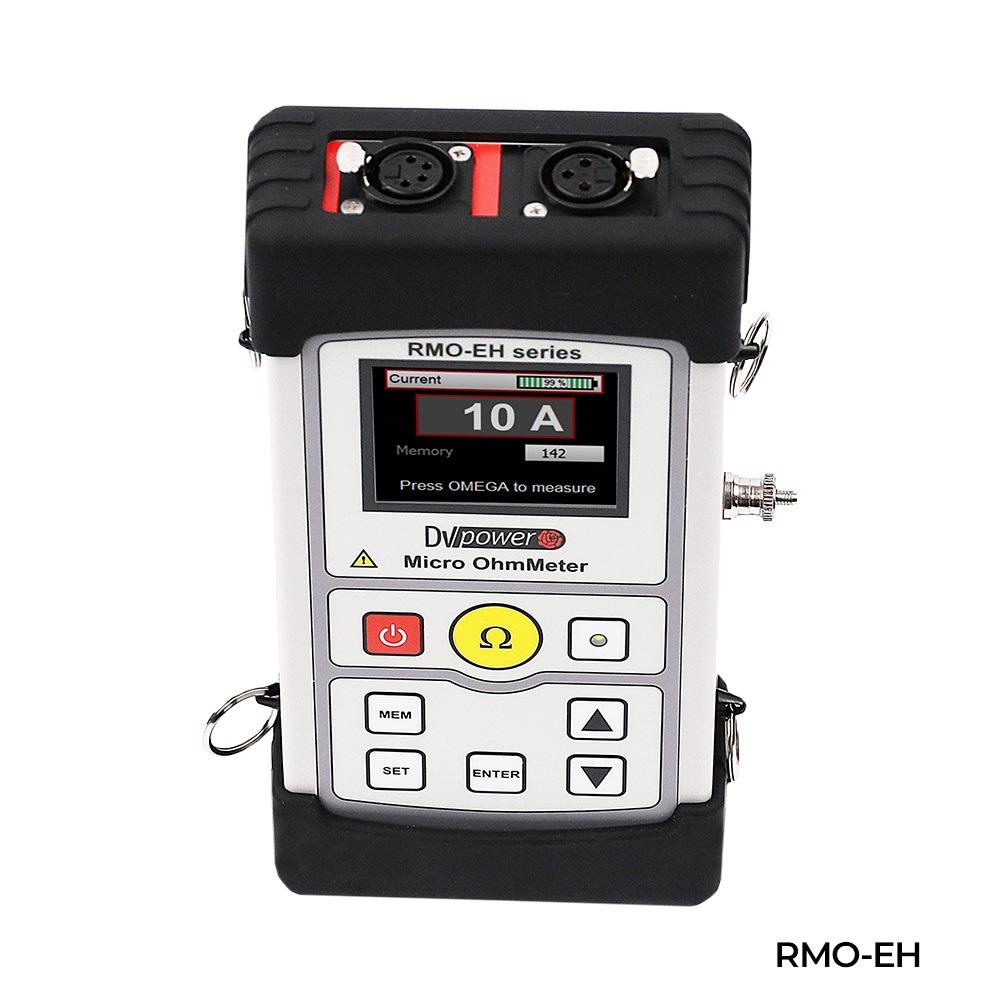

DV Power RMO-EH Handheld Micro-Ohmmeter

Battery

• Type: Li-Po (User-replaceable); 2 x 4 cells, 1300 mAh

• Recharge time: 1 hour

AC Adapter

• Input voltage: 90 – 264 V AC, 47-63 Hz

• Output voltage: 18 V DC

• Output current: 3.33 A

Output data

• Test current range: 1 mA – 10 A DC

• Maximum DC output voltage: 16.8 V (4 cells x 4.2 V)

Measurement

• Resistance range: 0.1 μΩ – 5 kΩ

• Resolution

0.1 – 999.9 μΩ: 0.1 μΩ

1 – 9.999 mΩ: 1 μΩ

10 – 99.99 mΩ: 10 μΩ

100 – 999.9 mΩ: 0.1 mΩ

1 – 9.999 Ω: 1 mΩ

10 – 99.99 Ω: 10 mΩ

100 – 999.9 Ω: 0.1 Ω

1000 – 4999 Ω: 1 Ω

Display

• LCD display TFT 2.8 in (43.2 mm x 57.6 mm) / 1.8 in x 2.3 in 320 x 240 pixels

Memory

• Internal: 32 GB SD Card

• RMO-EH can store up to 10 000 measurements

Environment conditions

• Operating temperature: -10 ºC - +55 ºC / +14 ºF - +131 ºF

• Storage & transportation temperature: -40 ºC - +70 ºC / -40 ºF - +158 ºF

• Humidity: up to 95 %, non-condensing

Dimensions and Weight

• Dimensions (L x W x D): 226 mm x 116 mm x 50 mm/ 8.9 in x 4.5 in x 1.9 in

• Weight: 0.95 kg / 2.1 lbs
