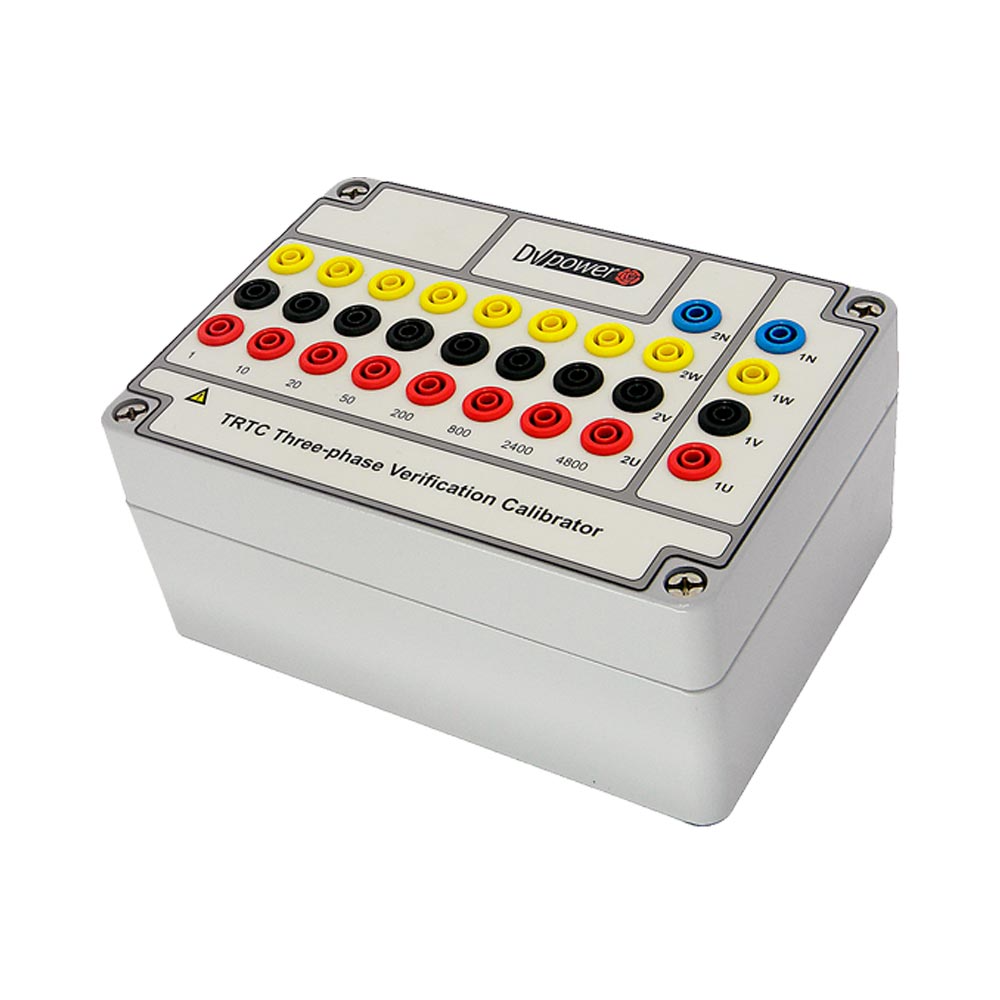

DV Power TRTC Turns Ratio Verification Calibrator

Measurement

• Turns ratio measuring ranges: 1, 10, 20, 50, 200, 800, 2400, 4800

• Typical turns ratio accuracy:

±0.2% for test voltages ≥8 V AC

±0.5% for test voltages <8 V AC

Dimensions and Weight

• Dimensions (W x H x D): 255 x 250 x 121 mm / 10.04 x 9.84 x 4.76 in

• Weight: 4 kg / 8.8 lbs

Environmental Conditions

• Operating temperature: -20 ºC – +55 ºC / 14 ºF – +131 ºF

• Storage & transportation: -40 ºC – +70ºC / -40 ºF – +158 ºF

• Humidity: 0% – 95% relative humidity, noncondensing
