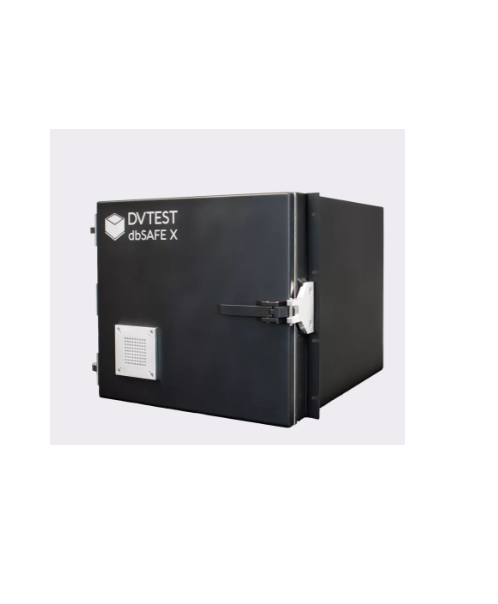

DVTEST 099270 Shielding Box (300 MHz ~ 18 GHz)

Isolation

Shielding Effectiveness* (dB)

300 MHz - 3 GHz: ≥ 90 dB

3 GHz - 6 GHz: ≥ 85 dB

6 GHz - 18 GHz: ≥ 80 dB

Construction:

Chassis Type: Welded Aluminum Structure

Surface Treatment:

Tri-Shield coated to

MIL-DTL-5541F

Door Style: Top or Front Load

RF Gasket: Braid Over Foam

Absorber: Broadband Lossy Foam Absorber

Dimensions W x D x H inches (mm)

Internal: 18” (457) x 12” (305) x 8” (203)

External: 18.75” (476.23) x 12.75” (323.85) x 10” (254)
