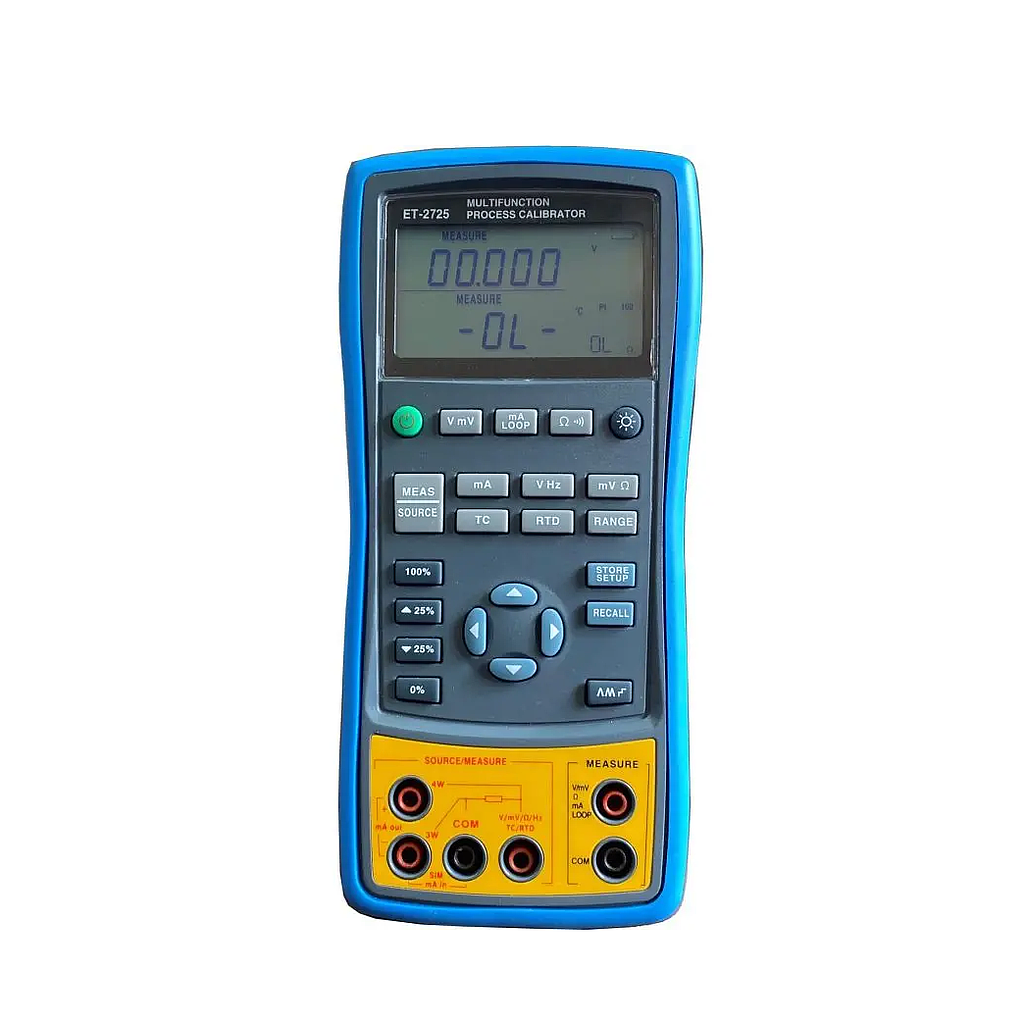

EAST TESTER ET2725A Multifunction Process Calibrator (0.02%)

Accuracy: 0.02%

Measurement Index

- DC V: Range: 0~60.000V(Upper Display ±30V）

- DC mA: Range: 0-24.000mA(Upper Display ±24mV）

- DC mV: Range: -15.000mV~80.000mV; 80.00mV~125.00mV

- Resistance: Range: 0.00Ω~440.00Ω

- Resistance (2 wires, 3wires): Range: 400..00Ω~3200.00Ω

- Resistance （4wires): Range: 0.00Ω~440.00Ω; 400..00Ω~3200.00Ω

- Frequency: Range: 1.000Hz~99.999Hz; 1000.0Hz~9999.99Hz; 10.000kHz~99.999kHz

- TC: J,K,T,E,R,S,B,N

- RTD: Pt100，Pt1000, Cu50， Cu100

Output Index

- DC mA(Active/Passive): Range: 0-24.000mA

- DC V: Range: 0~10.000V

- DC mV: Range: -15.000mV~99.999mV; 100.00mV~125.00mV

- Resistance: Range: 10.00Ω~440.00Ω; 400.0Ω~3200.0Ω

- Frequency: Range: 0.20Hz~200.00Hz; 200.0Hz~2000.0Hz; 2.000kHz~20.000kHz

- TC: J,K,T,E,R,S,B,N

- RTD: Pt100，Pt1000, Cu50， Cu100
