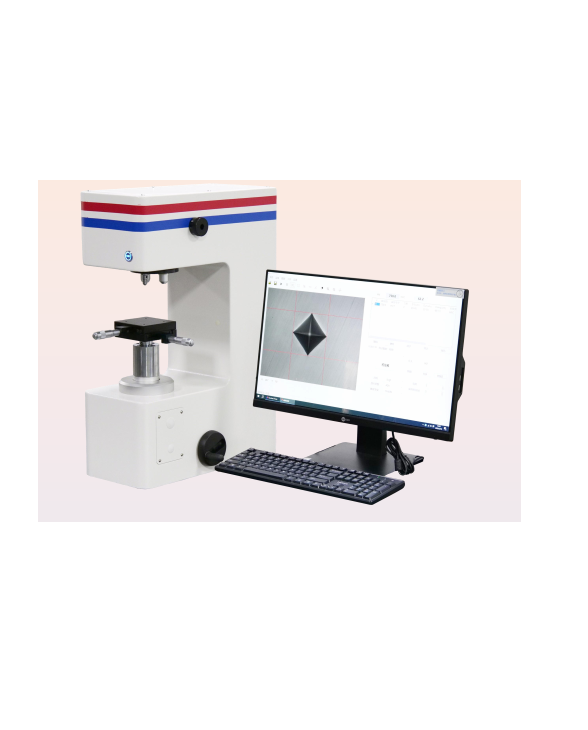

EBP DV-1MW Advanced Computerized Digital Micro Vickers Hardness Tester (9.8N)

Turret Manual: Turret

Force Selection: Manual Select

Objective: 10X (measure); 40X (measure)

Eyepiece: 10X digital eyepiece with built-in encoder

Total Magnification: 100X (measure); 400X (measure)

Testing force: 10g (0.098N), 25g (0.245N), 50g (0.49N), 100g (0.98N ), 200g (1.96N), 300g (2.94N), 500g (4.9N), 1000g (9.8N)

Hardness scale HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1

Conversion scale: HRA, HRB, HRC, HRD, HRF, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HV, HK, HBW

Loading speed: ≤50μm/sec

Indenter: Standard Rectangular pyramid diamond indenter (136º± 0.5º)

Measuring resolution: 0.01μm

Hardness value rang: 8HV-2900HV

Loading method: Automatically (Load, dwell and unload the testing force)

Duration time: 1-99s (each step is 1 second)

Objective lens center and indenter center: Coincidence accuracy error < 1um (objective lens center position can be adjusted)

X-Y Testing Table

Dim.:100×100 mm, Max. Travel Range: 25×25mm,

Moving Resolution Ratio: 0.01mm

Test space: Maximum height: 160mm (vertical); Throat depth: 170mm (horizontal)

Light Source: Built-in high lightness long lifespan LED Cold light source

Camera: Built-in 5MP camera

Software: Software can control machine turret, lightness, measure, etc, and generate customized test report

Machine size & N/W: 540*260*650mm 50kg

Power Supply 220V ± 5%, 50/60 Hz, 600W (110V is available)

Executed Standard GB/T4340.2, ASTM E384 & E92, EN-ISO 6507, JIS B-7734
