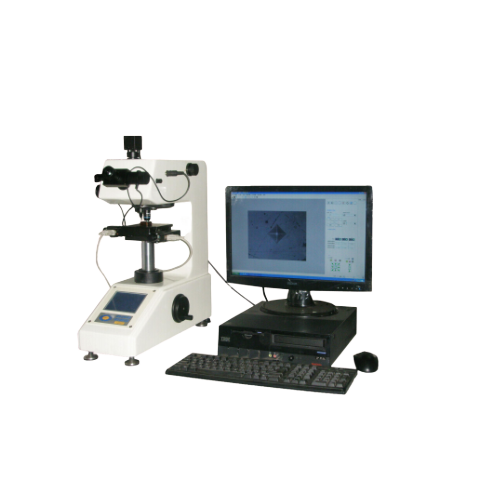

EBP DVS-1XYZ Fully Automatic Digital Micro Vickers Hardness Tester (5HV - 3000HV)

Test Force:

gf: 10gf, 25gf, 50gf, 100gf, 200gf, 300gf, 500gf, 1000gf

N: 0.098N, 0.246N, 0.49N, 0.98N, 1.96N, 2.94N, 4.90N, 9.80N

Test Range: 5HV - 3000HV

Test Mode: HV/HK

Loading Method: Automatic (Loading/Dwell/Unloading)

Turret: Automatic Shifting

Conversion Scale: HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HB

Data Output: Built-in Printer; WORD or EXCEL Report with Curve Chart

Hardness Reading: Indentation Displaying and Automatic Measuring on PC

Objective: 10X(Observe), 40X (Measure)

Eyepiece: 10X

Total Magnification: 100X, 400X

Resolution: 0.0625μm

Dwell Time: 1 - 99s, each step 1 second

Light Source: LED Cold light source

Motorized X-Y Table Size: 110 × 110mm; Travel: 50 × 50mm; Resolution: 0.002mm

Test space: Height: 100mm; Depth: 98mm

Execute Standard: ISO 6507, ASTM E384, JIS Z2244, GB/T 4340.2
