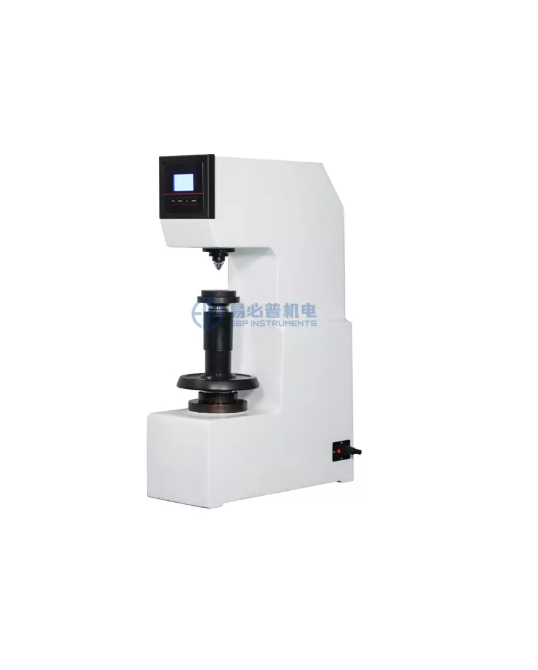

EBP HB-3000 Brinell Hardness Tester (8 – 650 HBW)

Brinell Scale: HB2.5/62.5, HB2.5/187.5, HB5/62.5, HB5/125, HB5/250, HB5/750, HB10/100, HB10/250, HB10/500, HB10/1000, HB10/1500, HB10/3000,

Test Force: 62.5kgf(612.9N), 100kgf(980.7N), 125kgf(1226N), 187.5kgf(1839N), 250kgf(2452N), 500kgf(4903N), 750kgf(7355N), 1000kgf(9807N), 1500kgf(14710N), 3000kgf(29420N)

Test space: 230*120mm (H*D)

Test force accuracy: 62.5-250Kgf ≤ 1% ;   500-3000Kgf ≤ 0.5%

Dwell time: 1-99s

Test range: 8-650HBW

Microscope: 20X

Standard: BSEN 6506, ISO 6506, ASTM E10, GB/T231

Power supply: AC220 ±5%, 50-60Hz

Dimension: Machine: 709*230*854mm

Weight: Net weight: 120kg
