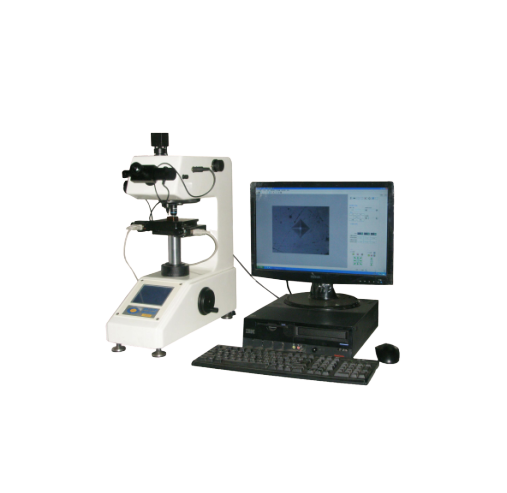

EBP HVS-1XY Semi-Automatic Advanced Digital Keypad Micro Vickers Hardness Tester (5HV-3000HV)

Test Force:

gf: 10gf, 25gf, 50gf, 100gf, 200gf, 300gf, 500gf, 1000gf

N: 0.098N, 0.246N, 0.49N, 0.98N, 1.96N, 2.94N, 4.90N, 9.80N

Test Range: 5HV-3000HV

Test Mode: HV/HK

Loading Method: Automatic (Loading/Dwell/Unloading)

Turret: Automatic Shifting

XY table:

Auto move: 110X110mm; Max. Move range: 25x25mm (X-Y axis direction); Min. Move range: 2um; Move speed: 1-10mm/sec

(adjustable); Displacement repeatability ≤2um; Move direction: Support 8 directions move

Software system: Multifunctional software, support automatic and manual measurement

CCD Pixel: 1.30 Million or 2 Million

Conversion Scale: HRA, HRB, HRC, HRD, HRF, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HV, HK, HBW

Data Output: WORD or EXCEL Report with indentation image and Curve Chart

Objective: 10X 40X

Min. Measuring Unit: 0.0625μm

Dwell Time: 1-99s, each step 1 second

Light Source: LED Cold light source

Test space: 85 x 120mm (Height x throat depth)

Execute Standard: ISO 6507, ASTM E384, JIS Z2244, GB/T 4340.2
