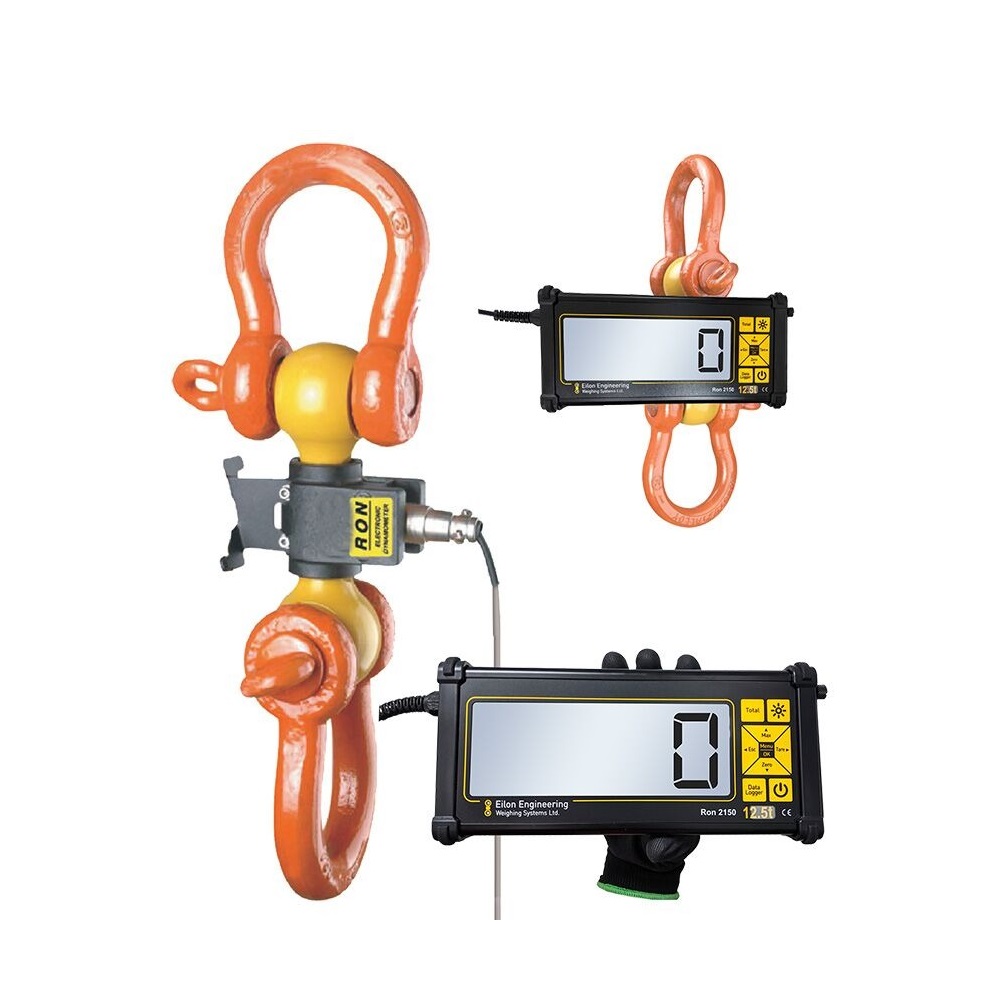

Eilon engineering S-100 Wired Dynamometer (100 tons, 0.1%)

Full Range: 100 tons

Resolution: 20kgs

Load cell weight:28kgs

Cable length: 15m

H1 (max.): 275mm

H2 (max.): 121mm

B (max.): 182mm

Ø D1 (max.): 165mm

Ø D2 (min.): 81mm

Matching anchor shackle size: Widebody125t

Safety factor: 5:1

Accuracy: 0.1% of full range.

Load Cell Material: high-strength, aerospace quality, alloy steel, polyurethane coated.

Proof Load: Each system proof-loaded to 200% of capacity (certified) up to a test force of 400t.

Display: 5/6 digits, 2" (50mm) liquid crystal display. Overload warnings (100%/130%), Max (peak hold), low battery indication, Gross/Net. Refresh rate 1Hz.

Sampling Rate: 200 per second.

Units: User selectable units (metric tons, short tons, kgs., Ibs., Newtons, Deca-Newtons, Kilo-Newtons).

Housing: Aluminum indicator, ABS load cell.

Temperature Range:

Load cell: -15°F to +175°F (-25°C to +80°C).

Indicator: -4°F to +158°F (-20°C to +70°C).

Environmental: IP65 (Optional IP67 Load Cell).
