ELCOMETER 500 Coatings on Concrete Inspection Kit (9mm)

Measuring range: up to 9mm (355mils)

Operating Temperature: -10 to 50°C (14 to 122°F)

Power Supply: 2 x AA batteries (rechargeable batteries can be used)

Battery Life: Alkaline: Approximately 15 hours Lithium: Approximately 28 hours

Gauge Weight: 161g (5.68oz) including batteries, without transducer

Gauge Dimensions: 141 x 73 x 37mm (5.55 x 2.87 x 1.46”) without transducer

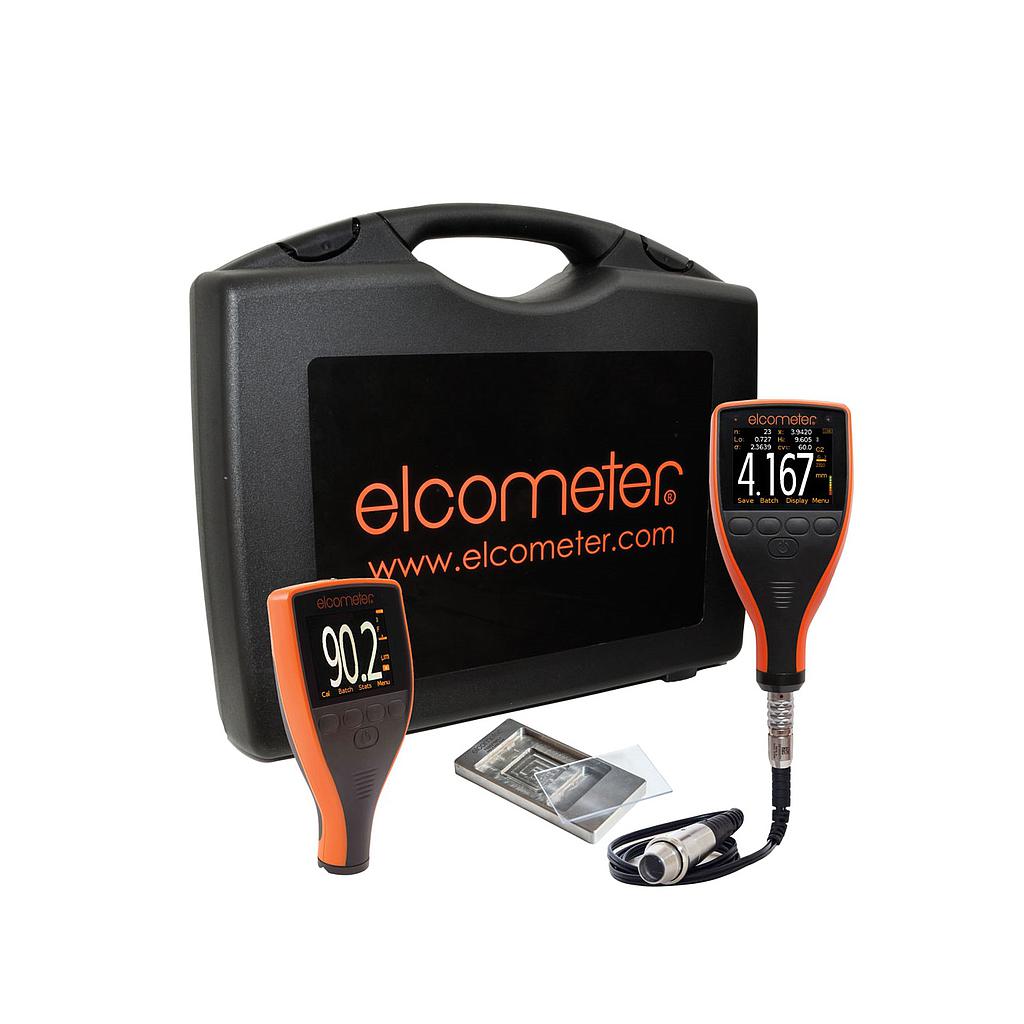

Packing List: Elcometer 500 Model T Coating Thickness Gauge, C1 & C2 coating thickness probes, C1 & C2 probe measurement foils: 1, 2, 3 & 8mm (40, 80, 120 & 310mils), Elcometer 456 Model B Ferrous Integral Gauge, Elcometer 456 calibration foils: 0.5 & 1.5mm (20 & 60mils), 2 x coating calibration moulds, 120ml (4fl oz) bottle of ultrasonic couplant, 4ml (0.14fl oz) bottle of probe tip oil, transit case, 2 x wrist harnesses, 6 x screen protectors, ElcoMaster® software & USB cable
