Display information: 2.4” (6cm) QVGA colour TFT display, 320 x 240 pixels
Battery type: 2 x AA dry cell batteries, rechargeable batteries can also be used
Battery life: Approximately 24 hours of continuous use at 1 reading per second
Minimum Headroom: See Accessories
Gauge dimensions(h x w x d): 141 x 73 x 37mm (5.55 x 2.87 x 1.46”)
Gauge weight (including batteries) : 161g (5.68oz)
Measurement range: 0-500μm (0-20mils)
Probe tip: Tungsten carbide tip 60° angle; Tip Radius: 50μm (2mil)
Operating temperature: -10 to 50°C (14 to 122°F)
Storage temperature: -10 to 60°C (14 to 140°F)
Accuracy & Resolution:
Accuracy: ±5% or ±5μm (±0.2mil); Resolution: 1μm (0.1mil)

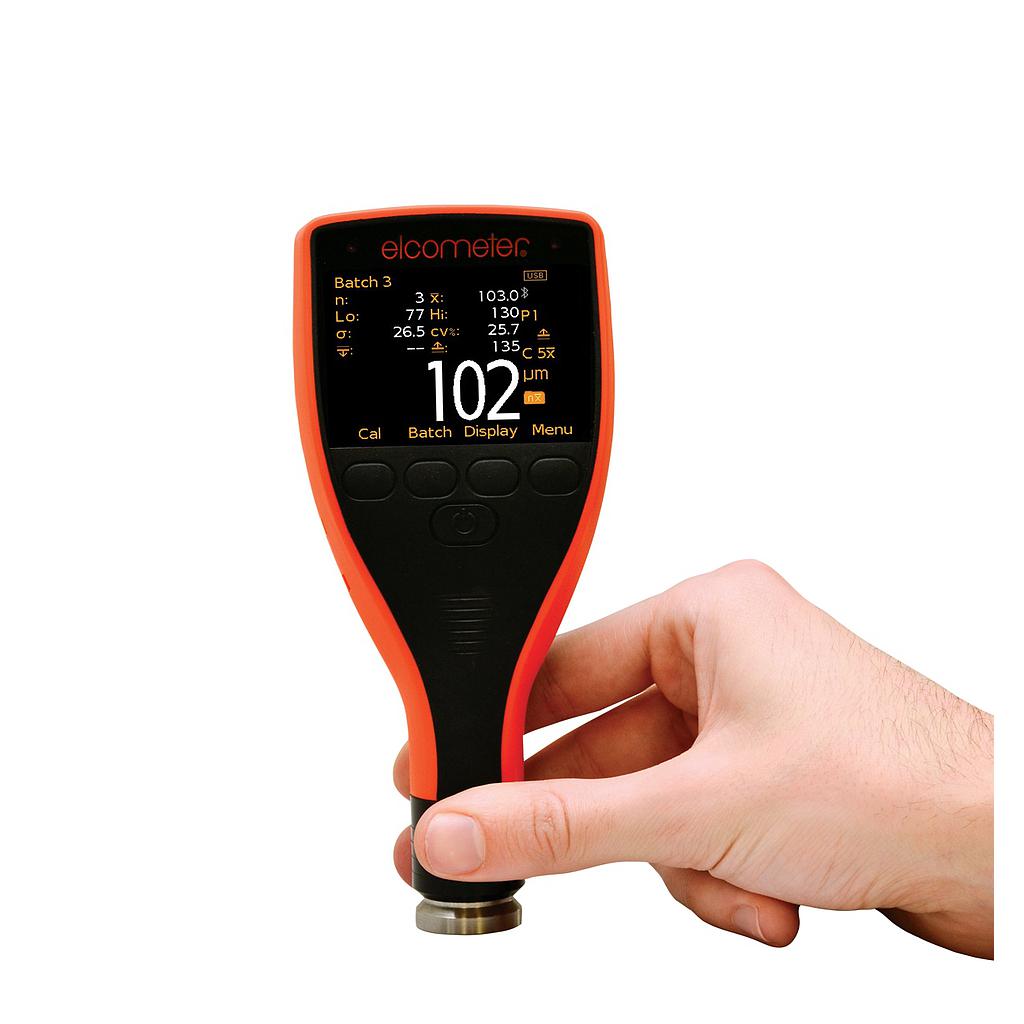

Packing List: Elcometer 224 gauge, glass zero tile, 2 x calibration foils†, wrist harness, plastic transit case (T), protective case, screen protector, probe protection cap†, 2 x AA batteries, test certificate, operating instructions, USB cable (T) & ElcoMaster® software (T)
