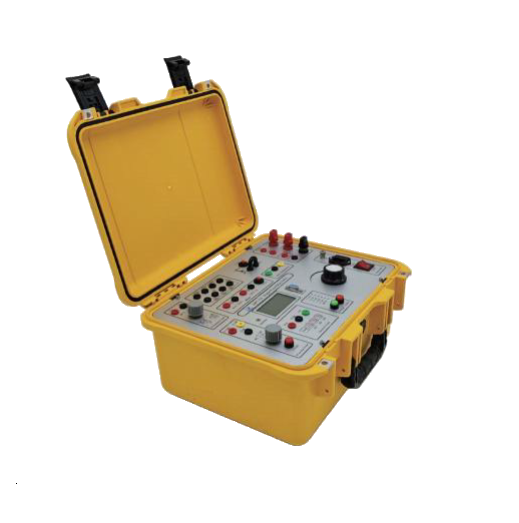

Elecgene SRPT 750 Single Phase Relay Tester

Ammeter

Measurement method: AC true RMS / DC mean value

Range (Internal): 0.000–150.0A

Range (External): 0.000–6.000A (AC or DC)

Accuracy: 0.5%

Voltmeter

Measurement method: AC true RMS / DC mean value

Range: 0.0–600.0V (AC or DC)

Accuracy: 0.5%

Timer

Measurement method: 0–999.999s, automatically reset after full scale

Range: 1mS

Accuracy: ±1mS

Current outputs – AC

Range No-load voltage (min) Full-load voltage (min) Full-load current (max)

0–10A 90V 10V 10A

0–40A 25V 22V 40A

0–100A 10V 8V 100A

Voltage outputs – AC / DC

Range No-load voltage (min) Full-load voltage (min) Full-load current (max)

0–250V (AC) 250V 240V 3A

0–300V (DC) 320V 250V 4A

Auxiliary DC output

Range Voltage Max current

0–110V DC 120V DC 0.5A

110–220V DC 220V DC 0.5A

Auxiliary AC output

Range Voltage Max current

0–250V (AC) 120V AC 0.5A

0–300V (DC) 5V AC 8A

General

Operating temperature: -10°C~50°C

Humidity: ≤90%

Power supply: 200~250VAC, 50/60Hz

Power consumption: 1000W

Net size: 420×350×200 mm

Net weight: 18 kg (without measuring cables)
