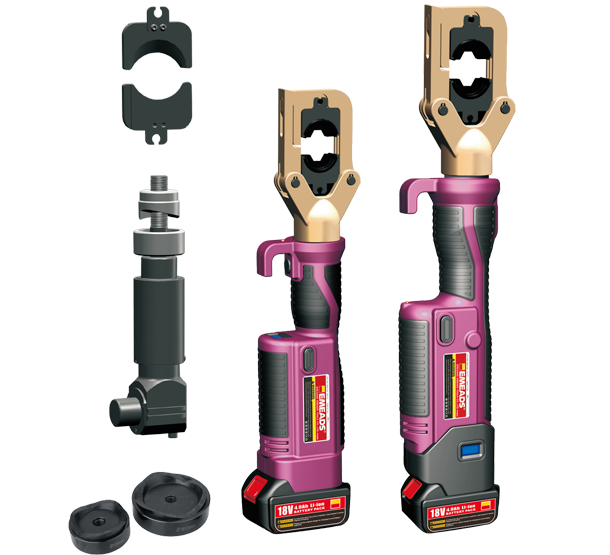

EMEADS GES-60UNV Charging Type Multi-Functional Hydraulic Tool (60KN, 42mm, 3 in1)

Technical data

Crimping force: 60KN

Stroke: 42mm

Cutting times: 70times (Per saturation voltage)

Cutting range: Cp40mrnmax (Armoured and Cu/AI cable)

Crimping times: 160times (Per saturation voltage)

Crimping range: 16-300mm2

Punching times: 1 ootimes (Per saturation voltage)

Punching range: Ợ22.5-cP61.5mm

Round punch Max.: 61.5mm

Working cycle: 3-15S

Voltage/capacity: 18V/4.0Ah

Net weight: 4.8kg

Charging time: 2 hours

Package: Plastic box

ACCESSORIES

Crimping dies: 4.6,10.16,25,35,50,70,95,120,150,185,240,300mm2

Punching dies: 22.5, 28.3, 34.6, 43.2, 49.6, 61.5mm

Adapter for crimping: 1 pc

Adapter for punching: 1 pc

Pull pin 3/4”,16UN Draw stud: 1 pc

Pull pin 7/16",20UN Draw stud: 1 pc

Spacer: 1 pc

Battery: 2pcs

Charger: 1 pc
