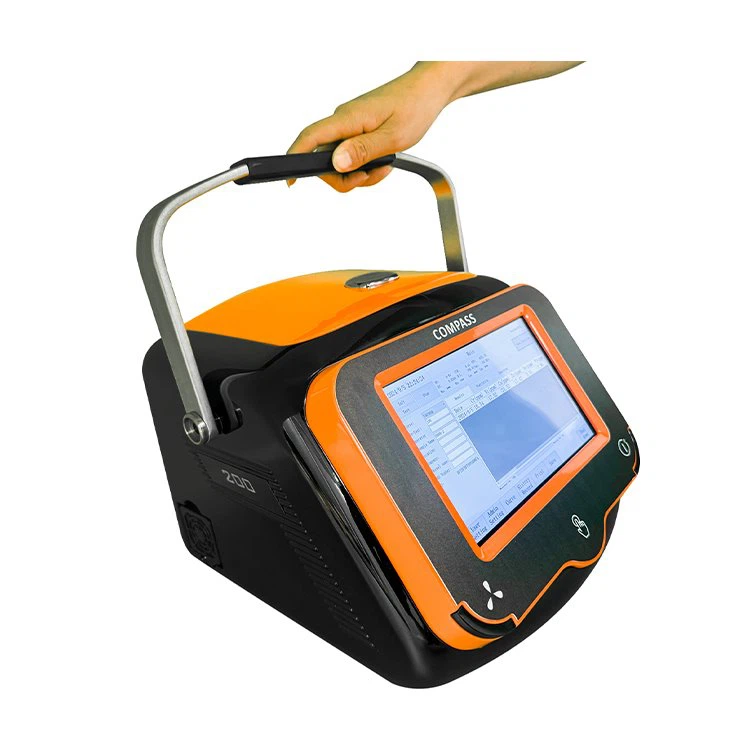

ESi COMPASS 200 Car Convertor Catalyst Analyzer

Detector: High-resolution SDD detector

Excitation source: 4-watt miniature integrated X-ray tube, 50kV Max, 200uA Max

Operating temperature: -20 to 50 °C

Measurement time: 30-200 seconds (the test time can be customized by the user))

Sample types: Liquid, solid and powder

Instrument calibration: Automatic calibration upon startup

Element analysis range: From Mg12 to U92 (Magnesium to Uranium)

Analyzable content range: 1ppm- 99.99%

Calibration curve: Platinum, palladium and rhodium precious metals in catalysts

Size: 270mm*320mm*230mm(Length*Width*Height)

Weight: 9.4kg

Display screen (resolution 1280*800): 8-inch, with Win10 operating system

Data transmission: USB Port, Bluetooth, Wi-Fi, GPS

Safety protection: Radiation indicator light, Built-in radiation protection device (automatically cuts off), Software warning

Report formats: Excel, PDF

Accessories and consumables:: Sample cup testing film, Special testing cup for catalysts, Sampling spoon, Special film for the testing window

Instrument configuration

>standard configuration

Pure Cu initialization standard sample

Special sample cup

USB data cable

Power cord

Test film

Instrument factory and calibration report

Warranty card

>Optional configuration

Battery: Continuous operation for eight hours

catalytic standard sample

150 mesh sieves

Application

In waste acquisition, analysis, and processing:

Helps assess precious metal content in waste like used catalytic converters and industrial catalysts, for efficient recycling and pricing.​

In precious metal smelters:

Monitors precious metal composition in raw materials and products, ensuring production accuracy and stability.​

For quality inspection:

Conducts strict checks on precious - metal - containing products to meet standards.​

In analysis and testing centers:

Detects and analyzes precious metal materials comprehensively, providing data for research and industry.

Features

Fast​

Non - destructive​

Intuitive​

No chemical sample preparation required. It can be directly tested with simple operation.​

Quantitatively test the contents of platinum, palladium, and rhodium at one time.​

The calibration curve has a wide dynamic linear range, covering from ppm to percentage content.​

Low operation and maintenance costs​

Equipped with a high - definition built - in camera to clearly display the sample part detected by the instrument.​
