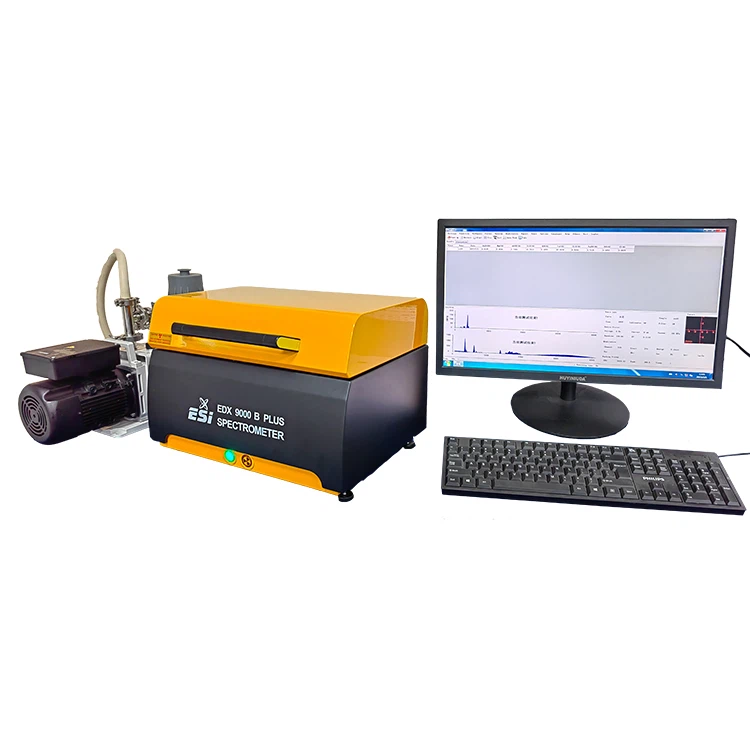

ESi EDX 9000B PLUS Energy Dispersive X-ray Fluorescence Spectrometer

Size of Spectrometer: 565mmx385mmx415mm

Size of sample chamber: 465mmx330mmx110mm

Size of Vacuum sample chamber: Φ150mm×75mm

Weight: 48Kg

Element Range: Na11-U92

Analysis content range: 1ppm- 99.99%

Detector: AmpTek high resolution FAST SDD

DPP Analyzer: 4096 Channel DPP analyzer

Excitation Source: 50W X-ray tube

HV unit: 0-50kV

Power supply: 220ACV 50/60HZ

Environment: -10 °C to 35 °C

Standard Accessories

Standard

Ag- Calibration standard

Vacuum pump

Mining Sample cup

USB cable

Power supply cable

Optional:

Mill machine

Sample pressing machine

Drying oven

Fusing bead machine

Balance

Features and benefits

1 Reliable Results You Can Trust

2 Integrated Sample Spinner Rotates the Sample During Measurement, Ensuring Repeatable Results, Even for Non-Uniform Samples such as Powders.

3 Minimization of User Errors: The Analyzer is Easy to Use with a Simple One-Button Start, Intuitive User Interface, and Large Easy-to-Read Display.

4 Low Operating Costs

5 No Expensive Gases such as Helium or Argon are required - Most Measurements can be Made in Ambient Air or a Vacuum.

6 Very Few Consumables are Required and Maintenance Costs are Extremely Low, especially when compared to other methods such as ICP.

7 Rugged and Durable

8 The ore and mineral analyzer is built with rugged, field-proven components and an industrial-grade PC. These features mean that the benchtop XRF ore tester series is rugged enough to be used in the harshest production facilities. EDX9000B mineral analyzers are all backed by a factory warranty. I

9 Fast Quality Control

10 Fast analysis means that our analyzers can be used at any stage of production for quick feedback on material composition and quality.
