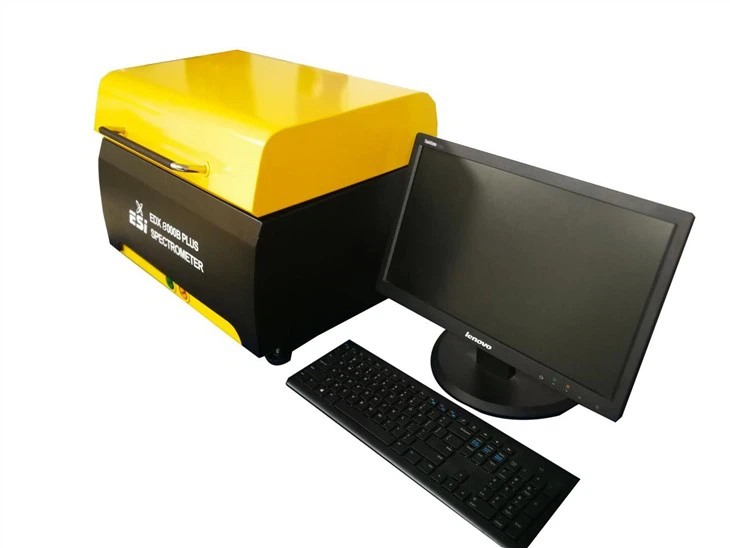

ESi EDX8000B PLUS Element Analysis Spectrometer

Size of Spectrometer: 560mmx380mmx410mm

Size of sample chamber: 460mmx310mmx95mm

Weight: 45Kg

Element Range: Mg12-U92

Analysis content range: 1ppm- 99.99%

Detector: High resolution SDD (Si-pin or FSDD optional)

DPP Analyzer: 4096 Channel DPP analyzer

Excitation Source: 50W X-ray beryllium window tube

HV unit: 0-50kV

Power supply: 220ACV 50/60HZ

Environment: -10 °C to 35 °C

Element composition analysis can be conducted for various sample forms, including solid, liquid, powder and Element

Multi element test, covering the periodic table Mg to U

Accurate, fast and nondestructive

The sample matrix is automatically matched, and up to 30 elements can be analyzed simultaneously

SDD detector with high counting range and excellent energy resolution

Up to 56 groups of collimators and filter combinations that can be switched automatically

HD industrial zoom built-in camera to identify sample status in real time
