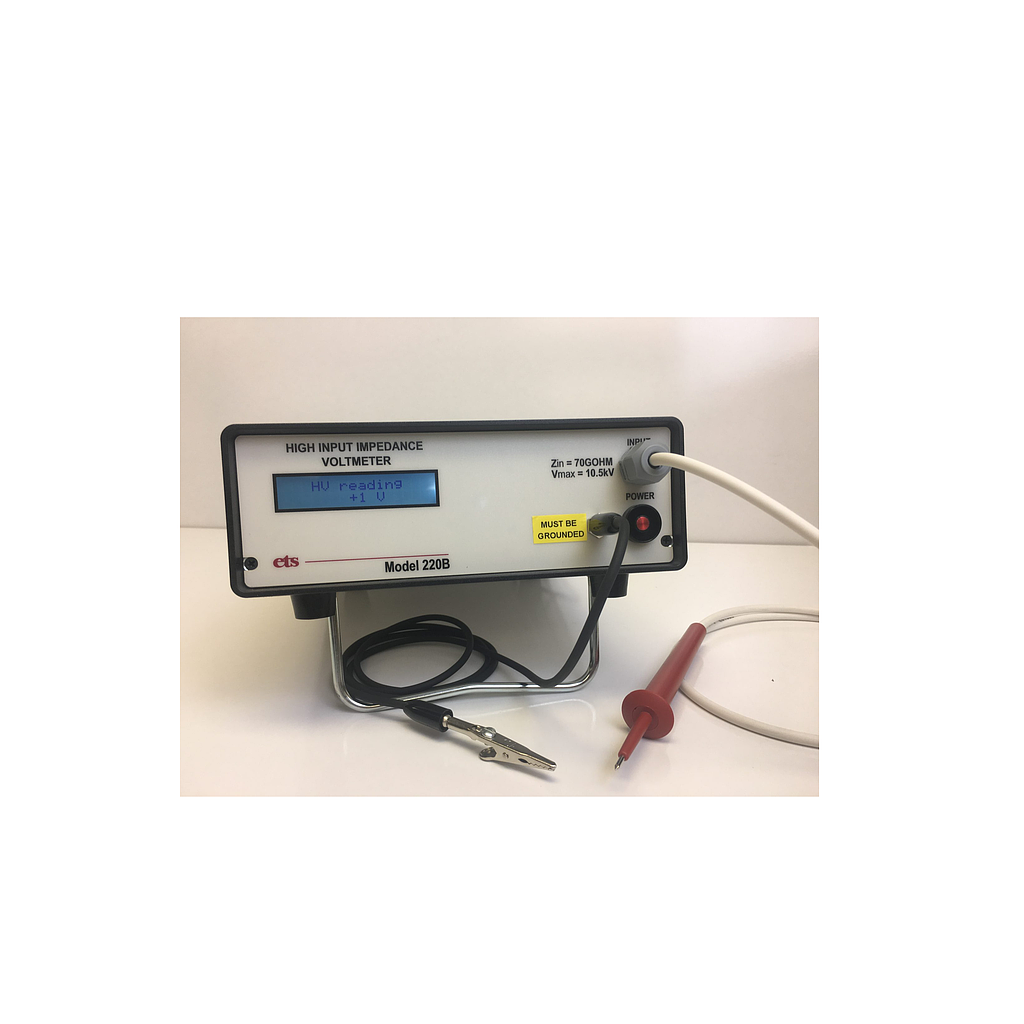

ETS 220B High Impedance Voltmeter (0 - ±10,000VDC)

Electrical:

Voltage range: 0 - ±10,000VDC

Accuracy: ±1%

Resolution: 1 Volt

Input resistance: 70 Gig Ohms

Display: 2-line LCD, backlit when using AC power.

Mechanical:

Enclosure Construction: Aluminum

Dimensions: 7.5”W x 10”D x 3”H (190 x 245 x 70mm)

Weight: 2.0 lbs. (0.91kg)

Probe:

Cable length: 36” (92cm)

Connector: High Voltage silicone rubber cable attached to unit

Body: Red plastic, 6” (15cm) long

Ground: 36” (92cm) Banana plug to banana plug w/ alligator clip

Environmental:

Operating Temp: 32 -122°F (0-50°C)

Temp coefficient: ±200ppm/°C (max)

Humidity: 0-70% RH, non-condensing

Power:

Battery: 2 x 9V Alkaline. Display indicates low battery.

AC Adapter: 90-250VAC, 50/60Hz, output 18 VDC.
