Gain: 2 dBi, 3.9 dBi, 4 dBi
VSWR: 2:1

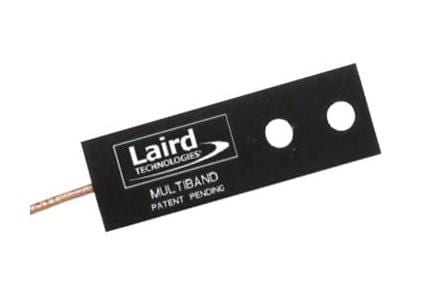

Style: I-Bar Flex
Width: 0.65 in
Length: 2 in
Impedance: 50 Ohms
Cable Type: 175 mm RF1.13
Unit Weight: 4.186 g
Mounting Style: Adhesive Mount
Number of Bands: 3 Band
Center Frequency: 2.45 GHz, 5.2 GHz, 5.8 GHz
Mechanical Style: PCB Trace
Maximum Frequency: 6 GHz
Minimum Frequency: 2.4 GHz
Termination Style: Connector
Antenna Connector Type: IPEX MHF
Protocol - WiFi - 802.11: 802.11, WLAN
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: - 30 C
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth
Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
