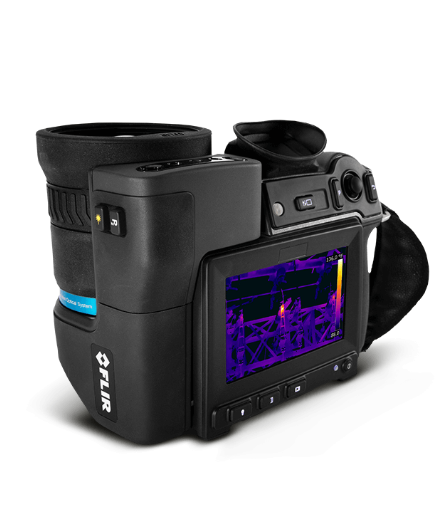

FLIR T1040, 28° HD Thermal Imaging Camera (28° × 21°, −40°C ~ 2000°C)

Imaging & Optical

4.3 inch Display: 800 x 480 pixels

Auto orientation: Automatic landscape or portrait

Automatic Image Adjustment: Standard or histogram based on the image content

Built_in Digital Camera: 5 Mpixel with LED light

Camera size excl lens [L x W x H]: 167.2 mm × 204.5 mm × 188.3 mm (6.6 in. × 8.0 in. × 7.4 in.)

Camera software updateUsing USB cable or SD card

Color palettesIron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava

Detector Pitch: 17 µm

Detector Type: Focal plane array (FPA), uncooled microbolometer

Digital Camera: Field of view adapts to the infrared lens

Digital image enhancement: Adaptive digital noise reduction

Digital Zoom: 1–8× continuous

Display Type: Capacitive touch screen

f number : 1.15

Field of view [FOV]: 28° × 21°

Focal Length: 36 mm (1.42 in.)

Focus: One shot or manual

Image Description: Add short note (stored in the JPEG exif tag)

Image Frequency: 30 Hz

Image Modes: Thermal, thermal MSX, picture in picture, digital camera

Infrared Image: Full color infrared image

IR Resolution: 1024 × 768; up to 3.1 MP with UltraMax

Laser: Activated by a dedicated button

Laser Alignment: Position is automatically displayed on the infrared image

Lens Identification: Automatic

Manual Image Adjustment: Linear based, possible to adjust level/span/max./min.

Minimum Focus Distance: 1.3 m (4.26 ft.)

Minimum IR focus distance: 0.4 m (1.32 ft.)

Minimum IR–visual alignment distance: 0.4 m (1.32 ft.)

Multi Spectral Dynamic Imaging [MSX]: Thermal image with enhanced detail presentation

Non_Radiometric IR Video: H.264 to memory card

Non_radiometric IR video recording: H.264 to the memory card

Non_radiometric IR video streaming: H.264 video using Wi-Fi H.264 video using USB

Picture_in_Picture: Resizable and movable infrared area on the visual image

Radiometric IR Video: Real-time radiometric recording (RTRR) to memory card

Radiometric IR video recording: Real-time radiometric recording (RTRR) to the memory card

Radiometric IR video streaming: Real-time radiometric streaming (RTRS) via USB

Sketch: Draw on the thermal/digital image or add predefined stamps Separate PC software with extensive report generation

Spatial resolution [IFOV: 0.47 mrad

Spectral Range: 7.5 - 14 µm

Thermal Sensitivity_NETD: <20 mK @ +30°C (+86°F)

UltraMax: Yes

UltraMax Supported: Yes

Video Lamp: Built-in LED light

Viewfinder: Built-in 800 × 480 pixels

Visual Image: Full color visual image

Visual Video Recording: H.264 to the memory card

Visual Video Streaming: H.264 video using Wi-Fi H.264 video using USB

Measurement & Analysis

Accuracy [Drift] in Screen EST Mode: Accuracy (drift): ±0.3°C (±0.5°F)

Area: 5 + 5 areas (boxes and circles) with max./min./average

Atmospheric transmission correction: Automatic, based on the inputs for distance, atmospheric temperature, and relative humidity

Color alarm [isotherm]: Above/below/interval

Difference Temperature: Delta temperature between the measurement functions and the reference temperature

Emissivity Correction: Variable from 0.01 to 1.0 or selected from the materials list

External Optics and Windows Correction: Automatic, based on the inputs of the window transmission and temperature

Measurement CorrectionsEmissivity, reflected temperature, relative humidity, atmospheric temperature, object distance, external infrared window compensation

Measurement Function Alarm: Audible/visual alarms (above/below) on any selected measurement function

Measurement Presets: No measurements, Center spot, Hot spot, Cold spot, User preset 1, User preset 2

Object Temperature Range: -40°C to 2000°C (-40°F to 3632°F)

Object temperature range Accuracy: ±1°C (±1.8°F) or ±1% at 25°C for temperatures between 5°C to 150°C ±2°C (±3.6°F) or ±2% of reading at 25°C for temperatures up to 1200°C

Optics Transmission Correction: Automatic, based on signals from internal sensors

Profile1 line profile with max./min. temperature

Reference Temperature: Manually set using the difference temperature

Reflected apparent temperature correction: Automatic, based on the input of the reflected temperature

Sampling Average in Screen EST Mode: Recommended temperature range: 30 to 45°C (86 to 113°F) in stable room temperature

Set_up CommandsDefine user presets, Save options, Programmable button, Reset options, Set up camera, Wi-Fi, GPS & compass, Bluetooth, Language, Time & units, Camera information

Spot Meter: 10

Thermal Sensitivity: <0.02°C at +30°C

User Presets: The user can select and combine measurements from any number of spots/boxes/circles/profiles/delta

User Interface

Display: Built-in touch screen, 4.3 in. wide screen LCD, 800 × 480 pixels

Languages: Arabic, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Swedish, traditional Chinese, Turkish

Text: Add table, select between predefined templates

Touch Screen: Yes

Voice: 60 seconds (via Bluetooth) stored with the image

Power

Battery operating time: >2.5 hours at 25°C (+68°F) and typical use

Battery Type: Rechargeable Li ion battery

Charging systemIn camera (AC adapter or 12 V from a vehicle) or two-bay charger

Charging Temperature: 0°C to 45°C (32°F to 113°F), except for the Korean market: 10°C to ‎45°C (‎50°F to ‎113°F)‎

Charging Time: 2.5 hours to 90% capacity, charging status indicated by LEDs

External Power Operation: AC adapter 90–260 V AC, 50/60 Hz or 12 V from a vehicle (cable with a standard plug, optional)

Power Management: Automatic power-off functionality, user configurable between 5 minutes, 20 minutes, and no automatic shutdown
