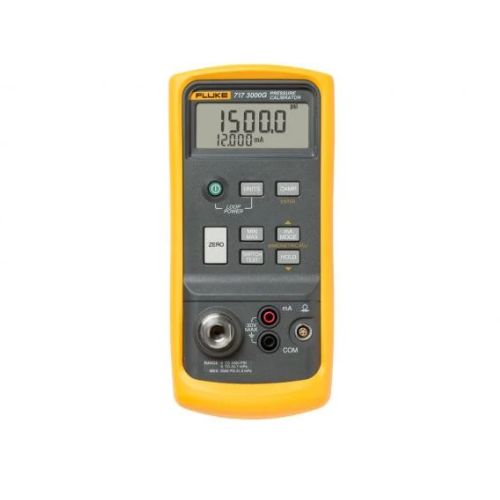

FLUKE FLUKE-717 15G/APAC Pressure Calibrator

Measurement Accuracy

- Current

Range: 0 to 24 mA (-25% to 125%)

Resolution: 0.001 mA

Accuracy: 0.015% + 2 counts

Specifications

Loop power

Range: 24 V DC

Accuracy: ±10%

Drive; 20 mA into 1000 ohms for battery > 6.8 V; 700 W for battery 5.8 to 6.8 V

Display: Clear 5 digit LCD

Environmental Specifications

Operating temperature: -10°C to 55°C

Storage temperature: -40°C to 60°C

Humidity (without condensation): 95% (10°C to 30°C)

75% (30°C to 40°C)

45% (40°C to 50°C)

35% (50°C to 55°C)

Operating altitude: 3,000 M max

Mechanical and General Specifications

Size (L x W x H): 201 x 98 x 52 mm (7.93 x 3.86 x 2.06 in)

Weight: 22 oz, approximately 600 G with holster
