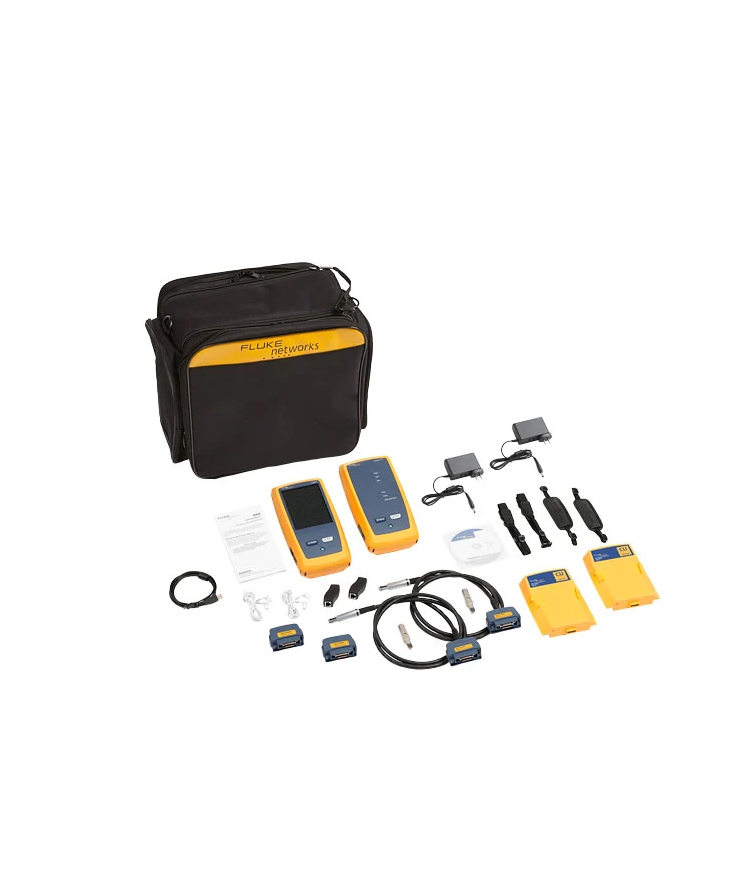

Fluke Network DSX2-8000 AP Cable Analyzer (includes DSX-PC5ES, DSX-PC6S, DSX-PC6AS)

Cat 6A / Class EA test time: 8 seconds

Cat 8 / Class I/II test time: 16 seconds

HDTDX/HDTDR diagnostic test times: ≈ 3 seconds

Internal memory: ≈ 5,000 Cat 8 with plots; ≈ 12,000 Cat 6A with plots

>Level V Accuracy (1 GHz) :  ✓

Level VI/2G Accuracy (2 GHz): ✓

Resistance Unbalance measurement :  ✓

Shield integrity check and distance to fault:  ✓

TCL measurement : ✓

ELTCTL measurement:  ✓

CDNEXT measurement: ✓

CMRL measurement: ✓

Built-in Alien XTalk capability:  ✓

Channel Adapter: 2 GHz Range

Permanent Link Adapter: 2 GHz Range

Cable Types

Shielded and unshielded pair LAN cabling: TIA Cat 3, 4, 5, 5e, 6, 6A, 8: 100 Ω ISO/IEC Class C, D, E, EA, F, FA and I/II: 100 Ω and 120 Ω

Standard Link Interface Adapters

Permanent link adapters:

Plug type: shielded RJ45

Optional Plug type: ARJ45/GG45

Channel Adapters:

Jack type: shielded RJ45

Optional Jack type: Tera, GG45/ARJ45

Include:

DSX-PC5ES

DSX-PC6S

DSX-PC6AS

Datasheet
