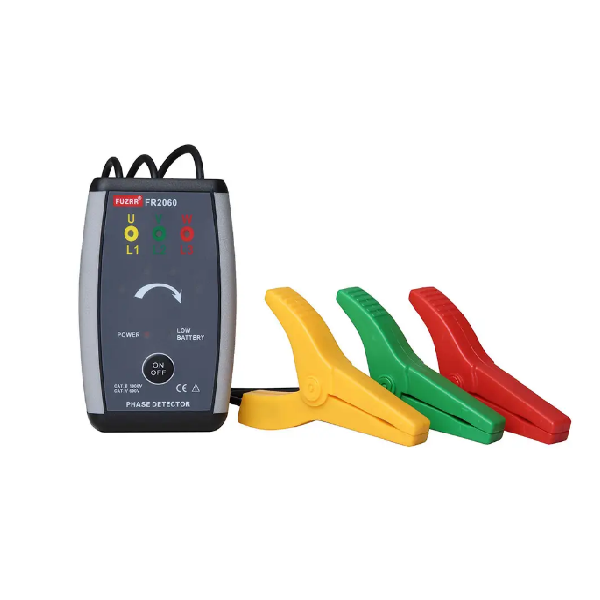

FUZRR FR2060 Non-contact Phase Sequence Tester (AC70~1000V)

Power: 9V battery, continuous use time is about 70 hours.

Measure mode: Non-contact clipping method

Wire position: The measured wire is in the center of the jaw

Frequency: 50Hz/60Hz Automatic Identification

Live electricity range: AC70~1000V

Measuring the highest voltage: AC1000V

Clamp wire size: Outside diameter: ø1.5mm~ø48mm

Display:

[Positive phase] 4 phase detector lights are turned on in a clockwise direction;

[Reverse phase] 4 phase detection lights are turned on counterclockwise;

[Live electricity] L1, L2, L3 lights in the voltage setting range;

[Lack of phase] L1 or L2 or L3 lights are not lit;

[Open circuit] L1 or L2 or L3 lights are not lit

Beep:

[Positive phase] The instrument emits intermittent short beep;

[Reverse phase] The instrument emits a continuous long beep.

Battery check: After the power is turned on, the power indicator is on; the battery is low; the LOW BATTERY lamp is on.

Clamp lead length: 0.6m

Instrument size: L117.6mm×W 81mm×T 25mm

Automatic shut-down: After about 6 minutes of power on, the meter automatically shuts down to reduce battery consumption.

Battery voltage: When the battery voltage drops to about 5.2V, the battery voltage is low symbol to remind to replace the battery

Instrument weight: Instrument:260g (including battery)

Maximum rated power: 300mVA

Insulation strength: 3.7kVrms
